Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HFJ11-2450E-L21
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part No: |
LPJ0011GDNL |
Specification: |
HFJ11-2450E-L21 |
Inductance OCL: |
350uH MIN |
Apllication: |
10/100Mbps |
Indicators: |
LEDs |
Samples: |
Available |
Part No: |
LPJ0011GDNL |
Specification: |
HFJ11-2450E-L21 |
Inductance OCL: |
350uH MIN |
Apllication: |
10/100Mbps |
Indicators: |
LEDs |
Samples: |
Available |
|
Specification |
Part No |
Manufacturer | Description |

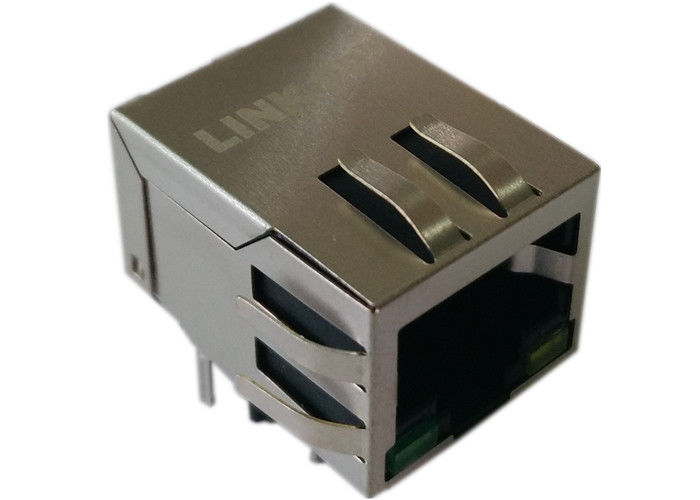

HFJ11-2450E-L21 |
LPJ0011GDNL |
LINK-PP |
1x10/100Mbps,8P8C,Shieldw/LED |
| Series | Connector Type | Applications | Mounting Type |
| Connectors | Female Rj45 |
10/100 |
Thru-Hole |
| Orientation | Termination | LED Color | Shielding |
|
90° Angle (Right) |
Solder | Optional | Shielded |
| NOTES: | |
| 1.Designed to support application,such as SOHO(ADSL | |
| modems),LAN-on-Motherboard(LOM),hub and Switches. | |
| 2.Meets IEEE 802.3 specification | |
| 3.Connector Materials: | |
| Housing: Thermoplastic PBT+30%G.F UL94V-0 | |
| Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm | |
| Pins: Brass C2680R-H Thickness=0.35mm | |
| Shield: SUS 201-1/2H Thickness=0.2mm | |
| Contact plating: Gold 6 micro-inches min.In contact area. | |
| 4.Wave solder tip temperature: 265℃ Max, 5 Sec Max | |
| 5.UL Certification: File Number E484635 |
