Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: MJR11D1YGX0-H33D
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specifications: |
MJR11D1YGX0-H33D |
Part No: |
LPJ0011HDNL |
Ethernet: |
1x10/100Mbps |
Mounting: |
Shield R/A |
Indicators: |
LEDs |
Samples: |
Available |
Specifications: |
MJR11D1YGX0-H33D |
Part No: |
LPJ0011HDNL |
Ethernet: |
1x10/100Mbps |
Mounting: |
Shield R/A |
Indicators: |
LEDs |
Samples: |
Available |
|
Specifications
|
Part No
|
Manufacturer
|
Description
|
|

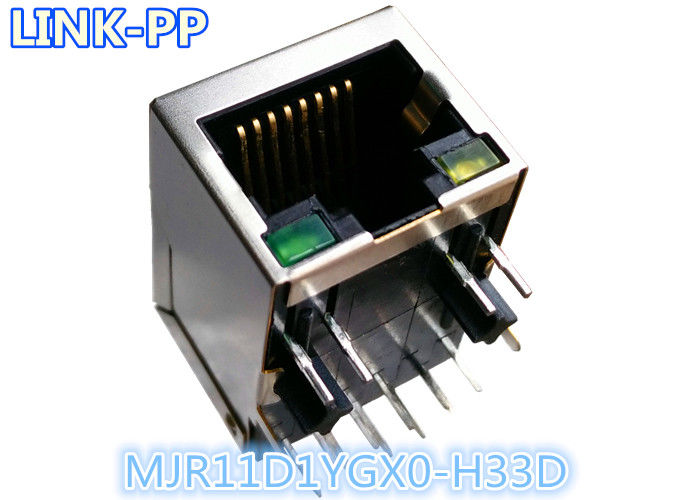

MJR11D1YGX0-H33D
|
LPJ0011HDNL
|
LINK-PP
|
1x10/100Mbps Ethernet Jack
|
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
|
Connectors, Interconnects
|
LINK-PP Female Rj45
|
10/100
|
Thru-Hole(SMT Optional)
|
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
|
90° Angle (Right)
|
Solder
|
Optional
|
(Un)Shielded,EMI-Finger
|
|
10/100 Ethernet RJ45 IEEE802.3u Compliant 6µ/30µ” Gold Plating (min) on Contacts 350uH min OCL at 8mA DC Bias Across the Full Temp Range 100% Electrical Testing 1500Vrms Hi-Pot Proprietary Robust Contact Design |
|||
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. |
