Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: A63-112-313P190
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Version_B: |
A63-112-313P190 |
Version_A: |
SM-LPJ0012HDNL |
Ethernet: |
10/100BT |
Made In China: |
LPJ0012HDNL |
Mail Customer: |
Raspberry Pi |
Family: |
Rj45 With Transformer |
Version_B: |
A63-112-313P190 |
Version_A: |
SM-LPJ0012HDNL |
Ethernet: |
10/100BT |
Made In China: |
LPJ0012HDNL |
Mail Customer: |
Raspberry Pi |
Family: |
Rj45 With Transformer |
|
Specifications
|
Made In China
|
Manufacturer
|
Description
|
||||||||||||||||||||||||||||||||||||
|
A63-112-313P190
|
SM-LPJ0012HDNL
Raspberry Pi Jack |
LINK-PP
|

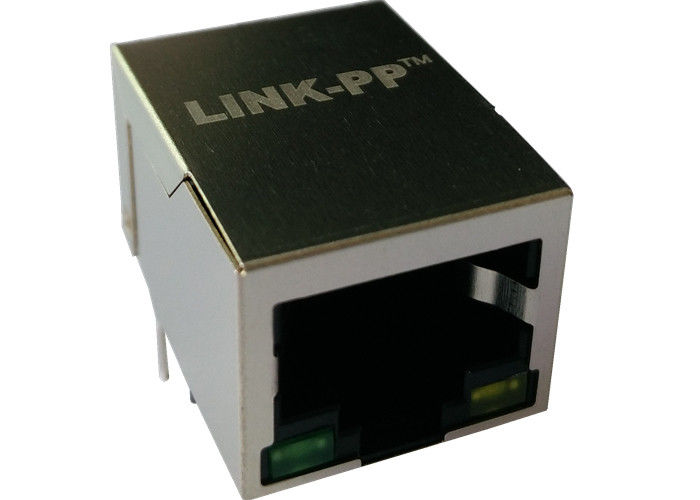

A63-112-313P190 Modular Connectors / 8P8C MAGNETIC JACK W/ LED LPJ0012HDNL
|
||||||||||||||||||||||||||||||||||||
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
||||||||||||||||||||||||||||||||||||
|
Connectors, Interconnects
|
LINK-PP Female Rj45
|
Raspberry Pi
|
Thru-Hole(SMT Optional)
|
||||||||||||||||||||||||||||||||||||
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
||||||||||||||||||||||||||||||||||||
|
90° Angle (Right) or
180°(Vertical)Optional
|
Solder
|
Optional
|
Shielded
|
||||||||||||||||||||||||||||||||||||
|
10/100 Ethernet RJ45 Equivalent / Pin to Pin / Cross Replacement A63-112-313P190
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P2%): TX=1CT:1CT RX=1CT:1CT 2.Inductance OCL: 350uH MIN @ 100KHz/0.1V 8mA DC Bias 3.Insertion Loss: 1.0-100MHz:-1.0dB MAX 4.Return Loss(dB MIN): 1-30MHz: -18 30-60MHz:-15 60-80MHz: -12 80-100MHz:-10 5.Cross talk(dB MIN): 30MHz: -40 60MHz: -35 100MHz:-30 6.Common Mode Rejection(dB MIN): 30MHz: -40 60MHz: -35 100MHz:-30 7.Hipot Test: 1500Vrms 8.Operating Temperature Range: 0℃ TO +70℃ : LPJ0012HDNL
-40℃ TO +85℃ : LPJ4012HDNL
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
