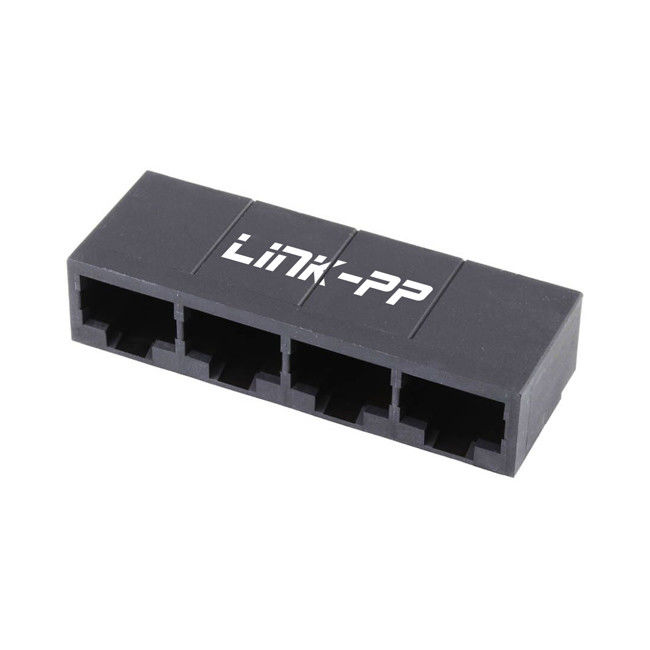

Product Details
Place of Origin: CHINA
Brand Name: LINK-PP
Certification: UL,ISO,ROHS,REACH
Model Number: 43223-8140
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: $0.09-$3.85
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Category: |
Modular Jacks And Plugs |
Magnetic: |
Without |
Number Of Ports: |
1x4 Ports |
Number Of Positions/Contacts: |
8P8C |
Performance Category: |
CAT 3 |
PoE: |
N/A |
Category: |
Modular Jacks And Plugs |
Magnetic: |
Without |
Number Of Ports: |
1x4 Ports |
Number Of Positions/Contacts: |
8P8C |
Performance Category: |
CAT 3 |
PoE: |
N/A |
| Product Category |
Modular Jacks and Plugs |
|---|---|
| Port Configuration |
1x4 |
| Light pipes /LEDs | None |
| Positions / Loaded Contacts | 8/8 |
| Orientation | Right Angle (Side Entry) |
| Termination Interface Style | Through Hole |
| Lead-Free Process Capability | WAVE |
| PoE | N/A |
| Jack Height | 12.83mm |
| PCB Locator | Yes |
| PCB Retention | Yes |
| PCB Thickness - Recommended | 1.57mm |
| Pitch - Mating Interface | 1.02mm |
| Pitch - Termination Interface | 1.27mm |
| Current - Maximum per Contact | 1.5A |
| Shielded | No |
| Voltage - Maximum | 150V AC (RMS) |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Tin |
| Material - Resin | High Temperature Thermoplastic |
| Color - Resin | Black |
| Durability | 500 mating cycles max |
| Operating Temperature Range | -40° to +85°C |
| Flammability | 94V-0 |
MECHANICAL REQUIREMENTS of 43223-8140 8P8C Jack:
|
DESCRIPTION |
TEST CONDITION |
REQUIREMENT |
|
Connector Mate Force |
Mate connector at a rate of |
22 N (5 lbf) |
|
Durability |
Mate connectors up to 500 cycles at a |
10 milliohms MAXIMUM |
|
Vibration |
Mate connectors and vibrate per |
10 milliohms MAXIMUM |
|
Plug Retention Force |
Apply an axial pullout force on the plug at a |
89 N (20 lbf) |
|
PCB Separation Forces |
Apply a perpendicular load on the plug at a |
4.5 N (1 lbf) |
PCB Locator: Helps to accurately locate the module jack on the PCB, ensuring that the pins are properly aligned with the PCB pads. It can improve assembly efficiency.
PCB Retention: Ensures that the module jack is firmly fixed to the PCB to prevent movement during handling, soldering or operation.
1) MATERIAL:
HOUSING: GLASS FILLED NYLON, UL94V-0, COLOR: BLACK
INSULATOR: GLASS FILLED NYLON, UL94V-0, COLOR: BLACK
TERMINALS: PHOSPHOR BRONZE: .012/ 0.30 THICK
2) FOR 6 CIRCUIT JACKS CENTERLINE TO CENTERLINE SPACING IS .448/ 11.38,
FOR 8 CIRCUIT JACKS CENTERLINE TO CENTERLINE SPACING IS .550/ 13.97.
