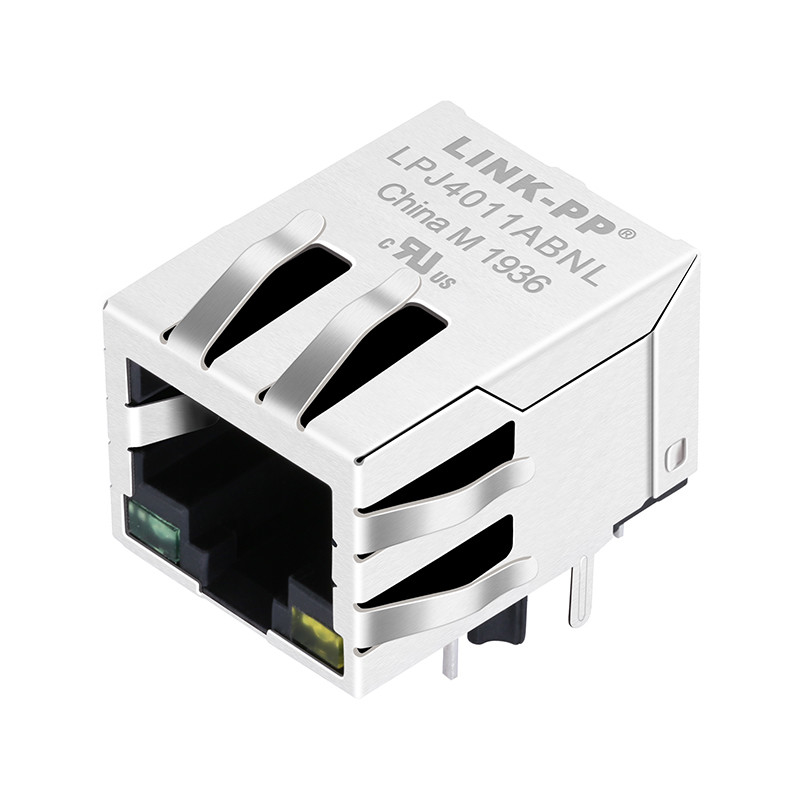

LPJ4011AB-MYNL RJ45 Connector With 10/100 Base-T Integrated Magnetics

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,REACH,ISO

Model Number: LPJ4011AB-MYNL

Payment & Shipping Terms

Minimum Order Quantity: 50/1200pcs

Price: $0.7-$1.5

Packaging Details: Tray

Delivery Time: 5-8 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5KK/Month

Get Best Price
Highlight:

RJ45 with Transformer

,

RJ45 Connector with Magnetics

,

RJ45 Integrated Magnetics

Part Number:
LPJ4011AB-MYNL
Product Type:
Single Port RJ45 Connector With Magnetics
LED Color:
Green - Yellow
Tab Direction:
Down
PoE Rating:
N/A
Speed:
100Base-T
Compatible Brands:
Pulse
Number Of Ports:
1X1
Latch:
Down
Data Rate:
100Base-T
PoE:
Non
LED Option:
With
EMl Tabs:
With
Mounting Type:
THT
Solder Type:
Wave
Operating Temperature Range:
-40°C To +85°C
Part Number:
LPJ4011AB-MYNL
Product Type:
Single Port RJ45 Connector With Magnetics
LED Color:
Green - Yellow
Tab Direction:
Down
PoE Rating:
N/A
Speed:
100Base-T
Compatible Brands:
Pulse
Number Of Ports:
1X1
Latch:
Down
Data Rate:
100Base-T
PoE:
Non
LED Option:
With
EMl Tabs:
With
Mounting Type:
THT
Solder Type:
Wave
Operating Temperature Range:
-40°C To +85°C
LPJ4011AB-MYNL RJ45 Connector With 10/100 Base-T Integrated Magnetics

Applications of 100Base-T RJ45 Conenctor:



The LPJ4011AB-MYNL Magjack is essential for various networking and communication applications. It provides reliable Ethernet connections for office and home networks, linking computers, printers, and smart devices. Industrial automation connects PLCs and SCADA systems, ensuring efficient data exchange. This RJ45 with Transformer is also crucial in telecommunication systems, supporting IP phones and PBX systems. It enhances security systems by connecting IP cameras and other surveillance equipment. Additionally, LPJ4011ABNL is used in consumer electronics like smart TVs and gaming consoles and in medical devices for real-time data transfer.

LPJ4011ABNL Specifications:

10/100 Base-T PoE Connector Rj45

Gender

Jack (Female)

Number of Ports

Single Port

Port Configuration

1x1

Speed

10/100 Base-T

Application

Education, Healthcare, and Smart home automation

Shield EMI Tabs

Top and side

Tab Direction

Down

LED light options

Built-in

Orientation

90° Angle (Right)

PCB Mount Angle

Side Entry

AutomDX

YES

Turn Ratio(±2%)

TX=1CT∶1CT

RX=1CT∶1CT

Inductance OCL

350uH MIN

@100KHz 0.1V 8mA DC Bias

Insertion Loss

-1.0dB MAX @1~100MHz

Return Loss

-18dB MIN @1~30MHz

-15dB MIN @30~60MHz

-12dB MIN @60~80MHz

-10dB MIN @80~100MHz

Cross talk

-40dB MIN @30MHz

-35dB MIN @60MHz

-30dB MIN @100MHz

Common Mode Rejection

-40dB MIN @30MHz

-35dB MIN @60MHz

-30dB MIN @100MHz

Hipot

1500Vrms

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-40℃ ~ +85℃

LPJ4011AB-MYNL Drawing:



LPJ4011AB-MYNL.pdf



Materials of RJ45 Integrated Magnetics:





The RJ45 Integrated Magnetics connector is constructed from high-quality materials. Which can provide excellent mechanical strength, resistance to environmental factors, and reliable electrical performance. Here are the details of the materials used:



Housing:

  • Material: Thermoplastic PBT + 30% Glass Fiber (G.F)
  • Flammability Rating: UL94V-0



Contact:

  • Material: Phosphor Bronze C5210R-EH
  • Thickness: 0.35mm



Pins:

  • Material: Brass C2680R-H
  • Thickness: 0.35mm



Shield:

  • Material: Stainless Steel (SUS) 304-1/2H
  • Thickness: 0.2mm



Contact Plating:

  • Material: Gold
  • Thickness: 6 micro-inches minimum in the contact area
