LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port

China LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port supplier
LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port supplier LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port supplier LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port supplier LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port supplier

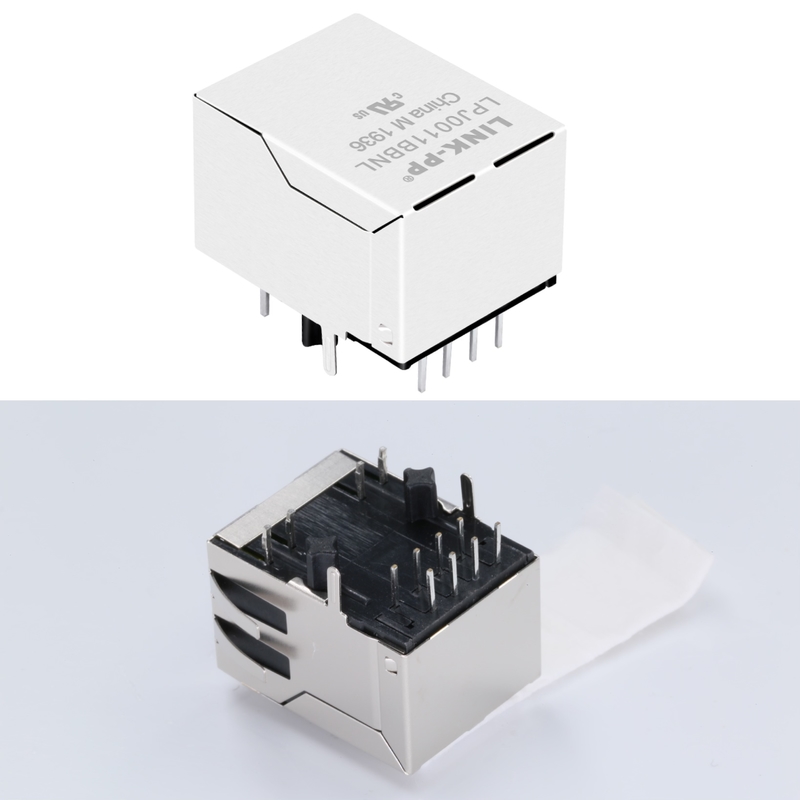

Large Image :  LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: LPJ0011BBNL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supporting
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
PN#: LPJ0011BBNL Interface: 10/100 Base-T,AutoMDIX
Munafactuer: LINK-PP Application: Fast Networking Solutions
Termination: Solder Samples: Available

LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port


LINK-PP LPJ0011BBNL PDFLPJ0011BBNL DatasheetLPJ0011BBNL Price
Rj45 Modular Connectors / Rj45 Modular Jack Pinout / 8p8c Modular Connector / 8 pin modular jack / Rj45 Connector Jack / Shielded Cat5 Connectors / 10/100base-tx ethernet / Female To Female Rj45 / Right angle Ethernet Connectors /  Female Rj45 Connector / Rj45 Female To Female Connector / Ethernet magnetics R45.
LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port

Part Number
Made In China
Manufacturer
Description
LPJ0011BBNL
LPJ0011BBNL
LINK-PP
1x10/100BT,R/A,1:1,Shield W/LEDs
Series
Connector Type
Applications
Mounting Type
Connectors
LINK-PP Rj45
Ti BeagleBone Black
Thru-Hole

Orientation
Termination
LED Color
Shielding
90° Angle (Right)
Solder
Green/Yellow
Shielded, EMI Finger

Supportive To Texas Instruments ' BeagleBone Black.
RJ-45 connector integrated with Filter
10/100Base-T Integrated with Magnetics

13F-64GYD2SNW2NL
J0011D01BNL
7499010211A
J00-0045NL
J0011D01B

LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 PortLPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port




ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
  TX=1CT∶1CT         RX=1CT∶1CT
2.Inductance OCL:
  350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0-100MHz
4.Return Loss:
  -18dB MIN @ 1-30MHz
  -15dB MIN @ 30-60MHz
  -12dB MIN @ 60-80MHz
  -10dB MIN @ 80-100MHz
5.Cross talk:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
6.Common Mode Rejection:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
7.Hipot: 1500Vrms
8.LED Lamp:
  Wave Length:GREEN/YELLOW:570nm/590nm
  Forward Voltage(Vf):
  1.8V-2.6V (Test Condition: 20mA)
9.Operating Temperature Range:0℃ TO 70℃ or -40℃ TO 85℃
NOTES
1.Designed to support application,such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
  Housing:Thermoplastic UL94V-0
  Contact/Shield: Copper alloy
  Shield plating: Nickel
  Contact plating: Gold 6 micro-inches min.In contact  area.
4.Wave solder tip temperature: 265℃ Max  ; Wave solder tip temperature time: 5 Sec Max
5.Try to meet the goals to cost-reduction

LPJ0011BBNL ▶ Ti BeagleBone Black Development Board 10/100 Ethernet Rj45 Port
