H16105DF | LP41689PNL Ethernet Isolation Transformer 10 BASE T Filter PTH module

China H16105DF | LP41689PNL Ethernet Isolation Transformer 10 BASE T Filter PTH module supplier
H16105DF | LP41689PNL Ethernet Isolation Transformer 10 BASE T Filter PTH module supplier H16105DF | LP41689PNL Ethernet Isolation Transformer 10 BASE T Filter PTH module supplier

Large Image :  H16105DF | LP41689PNL Ethernet Isolation Transformer 10 BASE T Filter PTH module

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H16105DF

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union,Paypal
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specifications: H16105DF Equivalent: SM-LP41689PNL
Mounting: PHT Apllication: 10/100M
Hi-pot: 1500Vrms OCL: 350uh Min
Turns Ratio TX/RX: 1CT:1CT Temperature Range: 0℃ To +70℃
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H16105DF | LP41689PNL Ethernet Isolation Transformer 10 BASE T Filter PTH module
Feature
♦ High attenuation from 7th & 5th order filter
used for TX & RX signal respectively.
♦ Designed to meet IEEE 802.3 requirement.
♦ For MAUs, hubs, and motherboard applications
♦ Operatiing temperature: 0 0 C to +70 0 C.
♦ Popular component , high value , low cost.
♦ Storage temperature: -20 0 C to +85 0 C.



H16105DF Electrical Specifications @25℃
1.Turns Ratio(±5%):
  TX=1CT:1CT     RX=1CT:1CT
2.OCL(100KHz,0.1Vrms,8mADC Bias):
  350uH Min
3.Insertion Loss:
  0.3-100MHz: -1.1dB Max
4.Return Loss:
  0.3-30MHz: -16dB Min
  40MHz: -14dB Min
  50MHz: -13.5dB Min
  60-100MHz: -10dB Min
5.Crosstalk:
  0.3-60MHz: -40dB Min
  60-100MHz: -30dB Min
6.DCMR:
  0.3-30MHz: -40dB Min
  60MHz: -35dB Min
  80-100MHz: -30dB Min
7.Hi-Pot:1500Vrms MIN
8.Operating Temperature:0~70℃

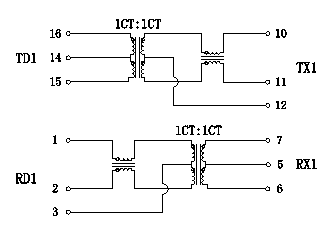

H16105DF | LP41689PNL Ethernet Isolation Transformer 10 BASE T Filter PTH module

The H16105DF is a low pass filter module that have been specifically designed to implement
the functionality of analog interface for 10/100 Base-T Ethernet application .
This module integrate a number of superior low pass filter to maximize attenuation in the stopband
while minimizing insertion loss ,return loss and delay distortion in the passband .
With high impedance common mode choke ,this device significantly reduce the high frequency noise
level which may contribute to conducted and radiated emissions. The transformer built in this module provide high voltage isolation to protect against static charge damage on the twist pair line.



Other Parts Available:



H16102DF H16101MM H16102MC H16101ME
H16102DF-R H16101MM-R H16102MC-R H16101ME-R
H16105DF H16104MM H16107MC H16101MC
H16105DF-R H16104MM-R H16107MC-R H16101MC-R
H16107DF H16116MM H16110MC H16119DF
H16107DF-R H16116MM-R H16110MC-R H16119DF-R
H16105DF | LP41689PNL Ethernet Isolation Transformer 10 BASE T Filter PTH module
