Model Number: HFJ14-1G01ER-L12RL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Gender: |
Jack (Female) |
Number Of Ports: |
1x4 Ports |
Data Rate: |
10/100/1000 Base-T |
LED Color: |
Green / Yellow |
Number Of Positions: |
40 Position |
Packaging: |
Tray |
EMI Fingers: |
With |
Tab Direction: |
Tab Down |
Gender: |
Jack (Female) |
Number Of Ports: |
1x4 Ports |
Data Rate: |
10/100/1000 Base-T |
LED Color: |
Green / Yellow |
Number Of Positions: |
40 Position |
Packaging: |
Tray |
EMI Fingers: |
With |
Tab Direction: |
Tab Down |
Description of 1000 Base-T Multi Port RJ45

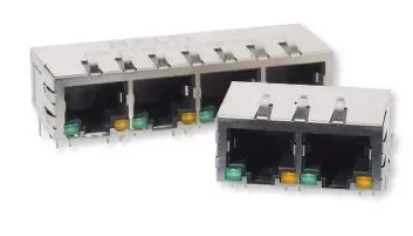

The HFJ14-1G01ER-L12RL is a 1x4 tab down RJ45 Magjack For 10/100/1000Base-T Ethernet Application. Link and activity status is monitored on each port through the green/yellow LED indicators. The right-angle mounting design of the female RJ45 connector makes it easy to install in space-constrained equipment enclosures. It features 40 contacting positions laid out at a 2.54mm pitch, to mate reliably with Category 5e or higher cabling. EMI-shielding fingers are used to protect network transmissions from electromagnetic interference. Industrial operating temperatures from 0 to 70 degrees Celsius, this multi-port gigabit connector provides a robust solution for high-speed Ethernet network.
ELECTRICAL SPECIFICATIONS @25°C
| HFJ14-1G01ER-L12RL Gigabit 1x4 Tab Down J45 Magjack with Green/Yellow LED | |
|---|---|
| Turns Ratio | 1:1 ±3% |
| OCL (100KHz, 0.1V, 8mADC) | 350μH min |
| Insertion Loss | |
| 1-100MHz | -1.1dB max |
| Return Loss | |
| 1-40MHz | -18dB min |
| 60MHz | -14dB min |
| 80MHz | -12dB min |
| 100MHz | -10dB min |
| Crosstalk | |
| 1-100MHz | -35dB typ |
| Common Mode Rejection (CMR) | |
| 0.1-30MHz | -50dB typ |
| 30-60MHz | -40dB typ |
| 60-100MHz | -35dB typ |
| Isolation | 1,500Vrms |
HFJ14-1G01ER-L12RL RECOMMENDED PANEL CUTOUT
HFJ14-1G01ER-L12RL RECOMMENDED P.C.BOARD PATTERN
