Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: RoHS, REACH
Model Number: 1840538-8
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: $0.3
Packaging Details: Tray
Delivery Time: Ships within 5 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6000K-PCS/Month
Number Of Terminals: |
28 |
Number Of Contacts: |
16 |
Number Of Ports: |
2 |
Number Of Loaded Positions: |
16 |
Terminal Pitch: |
9.11mm |
Product Length: |
32.76mm |
Product Depth: |
21.59mm |
Product Height: |
15.36mm |
Number Of Terminals: |
28 |
Number Of Contacts: |
16 |
Number Of Ports: |
2 |
Number Of Loaded Positions: |
16 |
Terminal Pitch: |
9.11mm |
Product Length: |
32.76mm |
Product Depth: |
21.59mm |
Product Height: |
15.36mm |

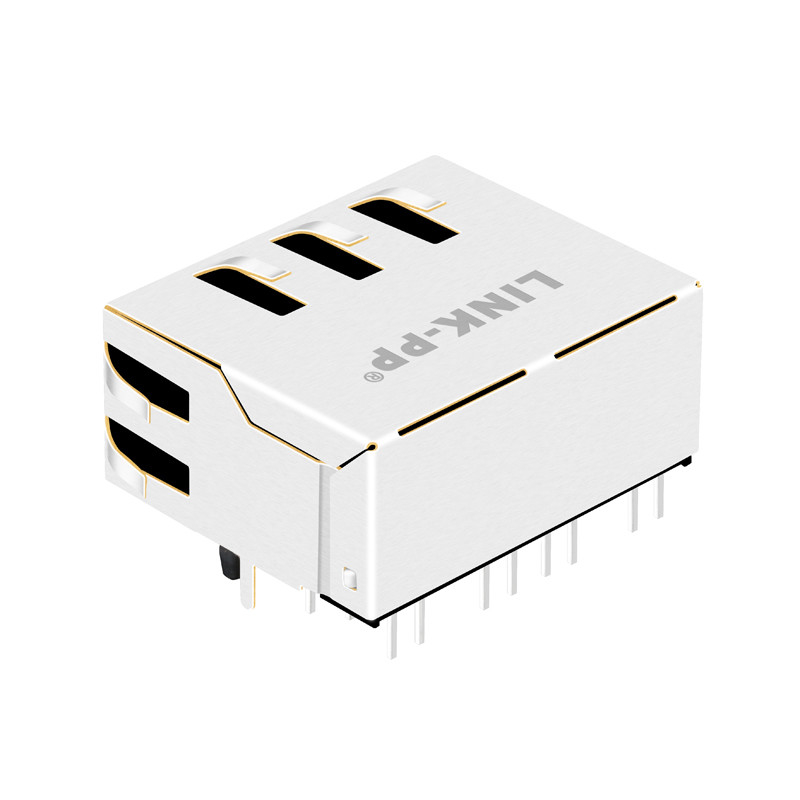

The 1840538-8 Ganged Gig 1X2 RJ45 Connector is designed for high-performance Gigabit Ethernet applications. It features with integrated magnetics for enhanced signal integrity. With a right-angle body orientation, solder termination method and through-hole mounting. The connector includes green/yellow LED indicators positioned with a tab-up design. The female rj45 connector operates within a temperature range of 0°C to 70°C.
| Product Style | RJ45 Multiport Connector |
| Mounting | Through Hole |
| Gender | F |
| Automotive | No |
| Integrated Magnetics | YES |
| Left/Right LED Color | Green/Yellow |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Turns Ratio | 1CT:1CT±2% |
| OCL | 350uH Min@100KHz,100mV,8mADC Bias |
| Hipot | 1500Vrms MIN |
| Operating Temperature | 0℃ to +70℃ |
| Shell Material | Brass |
| Shell Plating | Semi Bright Nickel |
