Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

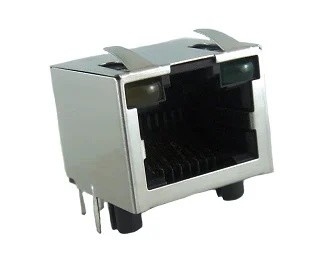

Model Number: RJHSEL38H
Payment & Shipping Terms
Minimum Order Quantity: 120PCS
Price: $0.06-$0.8
Packaging Details: Tray
Delivery Time: 1-2 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Products Type: |
RJHSE Series Modular Jack |
Part Number: |
RJHSEL38H |
Number Of Ports: |
1x1 |
Application: |
Adapter Cards And Routers |
Orientation: |
Right Angle |
Latch Orientation: |
Tab Up |
Tail Length: |
3.01mm (0.118in) To 4.00mm (0.157in) |
Pitch: |
1.02mm (0.040in) |
Products Type: |
RJHSE Series Modular Jack |
Part Number: |
RJHSEL38H |
Number Of Ports: |
1x1 |
Application: |
Adapter Cards And Routers |
Orientation: |
Right Angle |
Latch Orientation: |
Tab Up |
Tail Length: |
3.01mm (0.118in) To 4.00mm (0.157in) |
Pitch: |
1.02mm (0.040in) |
| Gender |
Jack (Female) |
| Integrated Magnetics | No |
| Shielding |
Shielded |
| Shield Type | EMI Tabs |
| Number of Ports | 1x1 |
| Termination Type |
Through Hole |
| Termination Style | Solder Pin |
| LED Option | Yes |
| Number of Positions / Contacts per Port | 8P8C |
| Mounting Direction | Right Angle |
| Latch Orientation | Tab Up |
| Light Pipe | No |
| Panel Stops | No |
| Performance Category | Standard |
| Profile | Standard |
| Left LED Color | Green, Yellow |
| Maximum Operating Temperature | + 85 ℃ |
| Minimum Operating Temperature | - 40 ℃ |
| Mating Cycles | 750 Cycles |
| Applications | Networking, Server, Telecom |
| Voltage Rating | 125 VAC |
| Current Rating | 1.5 A |
| Insulation Resistance | 500 MOhms |
| Manufacturer | LINK-PP |
| Part Status | Active |
| Series | Amphenol RJHSE |
| USOC Codes | RJ45 |
| Packaging | Tray |
| Factory Pack Quantity | 120 |
| Contact Materials | Phosphor Bronze |
| Contact Plating | Gold |
| Plating Contact area | 0.76μm (30μin) Gold |
| Housing Material | Thermoplastic (TP) |
| Housing Color | Black |
| Flammability Rating | UL 94 V-0 |
measured @ 20 mA, Green - 565 +/- 7 nm
measured @ 20 mA, Red - 625 +/- 5 nm
measured @ 20 mA
