Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJE7318800410
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.35
Packaging Details: TAPE & REE
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Orientation: |
Right Angle |
Latch Orientation: |
Tab Down |
Performance Category: |
Standard |
Position Available: |
8 |
Profile: |
Low |
LED Option: |
Yes |
Light Pipe: |
No |
Ports: |
1x1 |
Termination Style: |
Through Hole |
Shield Type: |
EMI Tabs |
Orientation: |
Right Angle |
Latch Orientation: |
Tab Down |
Performance Category: |
Standard |
Position Available: |
8 |
Profile: |
Low |
LED Option: |
Yes |
Light Pipe: |
No |
Ports: |
1x1 |
Termination Style: |
Through Hole |
Shield Type: |
EMI Tabs |
|

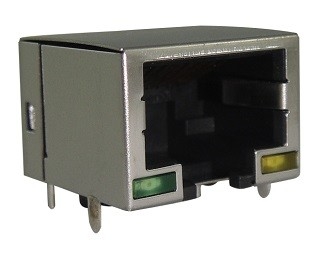

Specifications of RJE7318800410 Amphenol Commercial Products |
|
|---|---|
| Description | Attribute |
| Type | Modular jack |
| Gender | Female RJ45 Jack |
| Number of Positions / Contacts per Port | 8P8C |
| Ports Configuration | 1x1 |
| Performance Category | Cat 6 |
| Shielding | Shielded |
| Mounting Angle | Right Angle |
| Mounting Style | Through Hole-Solder |
| IP Rating | IP20 |
| Current Rating | 1 A |
| Voltage Rating | 125 VAC |
| Operating Temperature Range | - 55℃ to +85℃ |
| LED L / R Color | Yellow / Green |
| Tab Direction | Tab Down |
| Insulation Resistance | 500 MOhms |
| Flammability Rating | UL 94 V-0 |
| Mating Cycles | 750 Cycles |
1. Contact Resistance: 20 mΩ max
2. Insulation Resistance: 500 MΩ minimum at 500V DC for 2 minutes max
3. Current Rating: 1.0 Amps per contact
4. Voltage Rating: 125 Volts AC
5. DWV (Dielectric Withstanding Voltage):
Contact to Contact: 1,000 VAC, 60 Hz, 1 min
Contact to LED: 1,500 VAC, 60 Hz, 1 min
Contact to Shield: 1,500 VAC, 60 Hz, 1 min
6. LED to Shield: 1,000 VAC, 60 Hz, 1 min
7. LED Forward DC Current: 20mA typical
8. LED Forward Voltage:
2.4 Volts max. @ 20mA (for single colors)
2.4 Volts max. @ 20mA (for Bi-colors)
9. LED Reverse Voltage: 5 Volts maximum
10. LED Light Intensity:
4 to 30 MCD @ 20mA (for single colors)
8 to 20 MCD @ 20mA (for Bi-colors)
11. LED Wavelength:
Yellow: 587 ± 7 nm measured @ 20mA
Green: 565 ± 6 nm measured @ 20mA
Red: 625 ± 5 nm measured @ 20mA
