Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJM11D7-502-AB-EW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.07-$1.28
Packaging Details: Tray
Delivery Time: 2-3 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
ARJM11D7-502-AB-EW2 |
Connector Type: |
1x1 Right Angle |
Data Rate: |
10/100/1000 Base-T |
POE: |
POE |
Schematic Type: |
T,C |
Inductance: |
350 |
Tab Direction: |
Up |
Operating Temperature: |
-40°C ~ 85°C |
Part Number: |
ARJM11D7-502-AB-EW2 |
Connector Type: |
1x1 Right Angle |
Data Rate: |
10/100/1000 Base-T |
POE: |
POE |
Schematic Type: |
T,C |
Inductance: |
350 |
Tab Direction: |
Up |
Operating Temperature: |
-40°C ~ 85°C |

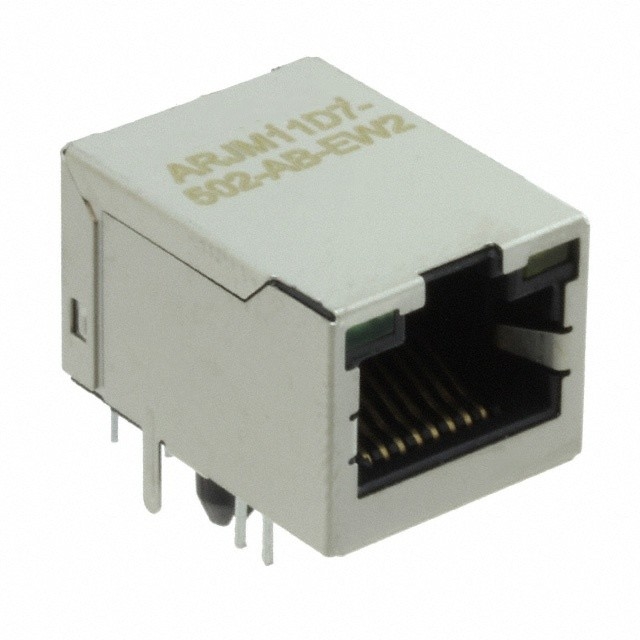

The ARJM11D series ARJM11D7-502-AB-EW2 PoE Magjack is designed for 10/100/1000 Base-T data transmission. Featuring Power over Ethernet (POE), it operates efficiently within a wide temperature range from -40°C to 85°C. It has an inductance of 350 and a T,C Schematic Type. Its compact dimensions of 21.3mm x 15.9mm x 13.8mm, coupled with a through-hole mounting type, ensure easy integration into various applications. ARJM11D7-502-AB-EW2 complies with RoHS/RoHS II standards.
| Part Number | ARJM11D7-502-AB-EW2 |
|---|---|
Part Status | Active |
Connector Type | RJ45 |
Number of Ports | 1 |
Number of Rows | 1 |
Applications | 1G Base-T, AutoMDIX |
Mounting Type | Through Hole |
Orientation | 90° Angle (Right) |
Termination | Solder |
Length | 21.3 mm |
| Width | 15.9 mm |
| Height | 13.8 mm |
| Shielding | Shielded |
LED L / R Color | Green / Yellow |
Number of Positions / Contacts per Port | 8P8C |
Performance Category | Cat 5, Cat 6 |
Features | Board Lock |
Tab Direction | UP |
Contact Finish | Gold |
Operating Temperature | -40°C ~ 85°C |
• Networking
• Network servers
• Hubs
• Routers
• Ethernet switches
• Computers and peripherals
• Laptops
• Modems
• Telecom
• PBX system
• Fax machines
• Phone line security systems
• Telephone, cellular and mobile phones
• Office and home equipment
• ATMs
• Point of sales terminals
• Vending machines
• Security systems
• Set-top boxes
• Medical analysis equipment
