Model Number: RJLBC-060TC1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray Package:50 pcs in 1 tray, 24 tray in 1 carton, which is 32*30*31cm, 8.5KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part #: |
RJLBC-060TC1 |
Made In China: |
SM-LPJ4013EDNL |
Interface: |
10/100 Base-T, AutoMDIX |
LEDs: |
Yellow/Green |
Termination: |
Solder |
Samples: |
Supportive |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Part #: |
RJLBC-060TC1 |
Made In China: |
SM-LPJ4013EDNL |
Interface: |
10/100 Base-T, AutoMDIX |
LEDs: |
Yellow/Green |
Termination: |
Solder |
Samples: |
Supportive |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
|
Part Number
|
Made In China
|
Manufacturer
|
Description
|
|
RJLBC-060TC1
|
SM-LPJ4013EDNL
|
LINK-PP
|

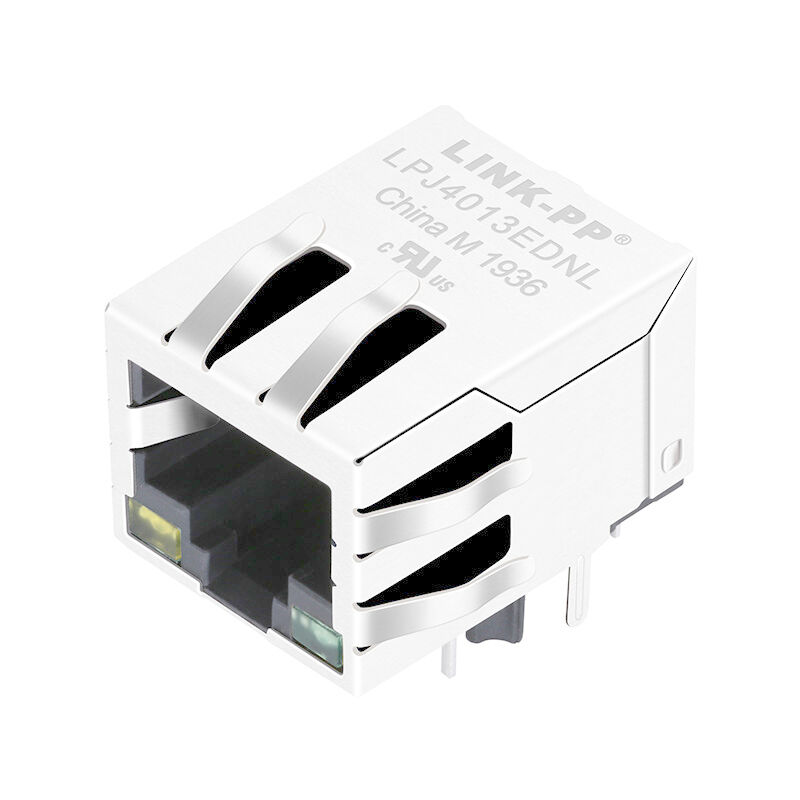

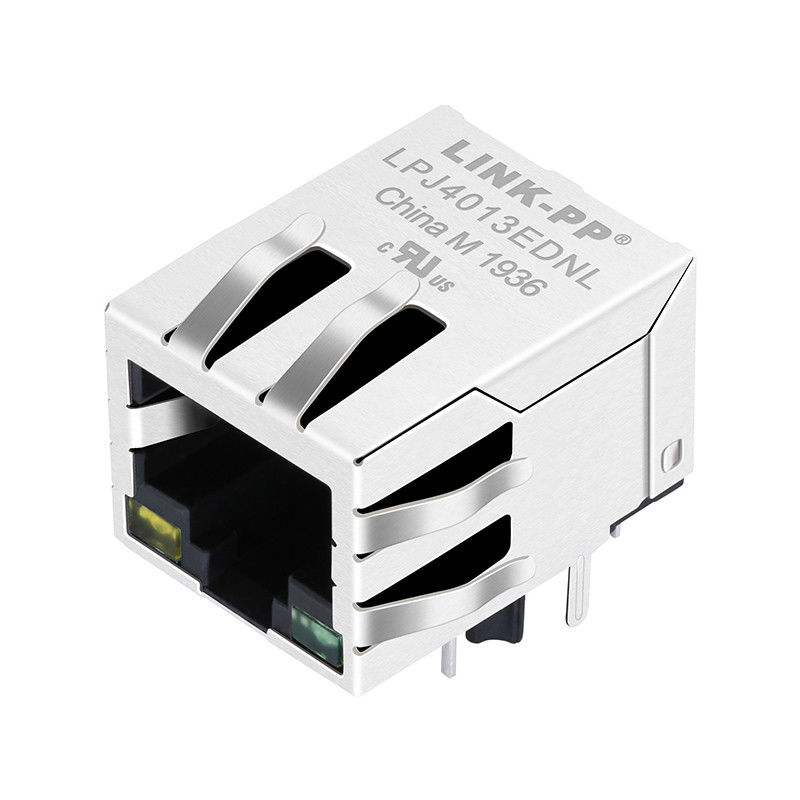

RJLBC-060TC1 RJ45 Modular Jack 10/100 BASE-TX Filtered Integrated LED
|
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
|
Connectors, Interconnects
|
LINK-PP Rj45
|
Ti BeagleBone Black
|
Thru-Hole
|
|
|
|||
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
|
90° Angle (Right)
|
Solder
|
Yellow/Green
|
Shielded
|
|
Single 10/100 BASE-TX Filtered Connector Integrated LED Support Auto MDIX
MODEL NO. : RJLBC-060TC1 Features ◎ RoHS Compliant ◎ Fully shielded magnetics protect data from internally generated digital noise ◎ Reduces the overall length of the signal path for improved common mode performance ◎ Implements full common mode termination scheme with used and unused twisted pairs ◎ Meets IEEE802.3 Baseline Wander Compensation specification ◎ Integrates high voltage capacitor to chassis ground ◎ Supports all major transceivers with matched turns ration and complete integration of specified termination ◎ Design for 100base-tx transmission over UTP-5 cable ◎ Operating TEMP. range: -40 ℃ to +85 ℃ ◎ Storage TEMP. range: -55 ℃ to + 125 ℃ ◎ Primary OCL inductance: 350μH MIN. at 100KHz/0.1Vrms with 8mA DC bias ◎ With the LED lamp Typical Performance Characteristics@ 25C ELECTRICAL SPECFICATIONS @25℃ 1.Turn Ratio(±2%): TX=1:1 RX=1:1 2.Inductance OCL: 350uH MIN @100KHz/0.1V,8mA DC Bias 3.Insertion Loss: -1.0dB MAX @ 1-100MHz 4.Return Loss: -18dB MIN @ 1-30MHz -16dB MIN @ 30-60MHz -12dB MIN @ 60-80MHz 5.Cross talk: -30dB MIN @ 1-100MHz 6.Common Mode Rejection: -30dB MIN @ 1-100MHz 7.Hipot Test: 1500Vrms MIN 8.Operating Temperature Range: -40℃ TO +85℃. |
|||
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
