XFATM6CB-CLYG1-4MS Magjack Rj45 LPJ4026GDNL With Magnetic 10 / 100Base-T

Name: XFATM6CB-CLYG1-4MS Magjack Rj45 LPJ4026GDNL With Magnetic 10 / 100Base-T
Brand: LINK-PP
SKU: XFATM6CB-CLYG1-4MS
Rating: 4.6 (121 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XFATM6CB-CLYG1-4MS

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Part Number:	XFATM6CB-CLYG1-4MS => LPJ4026GDNL	Apllication:	10/100 Base-T,AutoMDIX
Original Munafactuer:	LINK-PP	Project Application:	Networking Solutions
Termination:	Solder	LEDs:	Green/Yellow

Part Number:	XFATM6CB-CLYG1-4MS => LPJ4026GDNL
Apllication:	10/100 Base-T,AutoMDIX
Original Munafactuer:	LINK-PP
Project Application:	Networking Solutions
Termination:	Solder
LEDs:	Green/Yellow

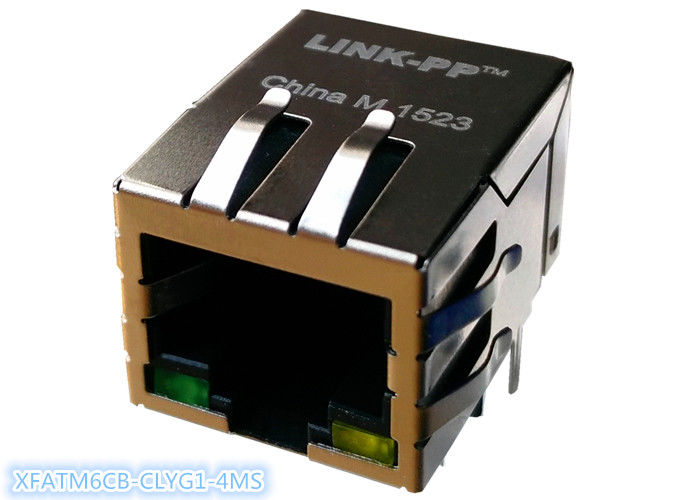

XFATM6CB-CLYG1-4MS Magjack Rj45 LPJ4026GDNL With Magnetic 10 / 100Base-T

Competitor Cross Reference

Part Number

Manufacturer

Part Number

Manufacturer

Description

XFATM6CB-CLYG1-4MS

LPJ4026GDNL

LINK-PP

XFATM6CB-CLYG1-4MS , Magjack Rj45 LPJ4026GDNL With Magnetic 10 / 100Base-T

Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

LINK-PP Rj45

Ti BeagleBone Black

Thru-Hole

Orientation

Termination

LED Color

Shielding

90° Angle (Right)

Solder

Y/G

Shielded

Features

XFATM6CB-CLYG1-4MS=> LPJ4026GDNL【Mass Production Model】
10/100 Base-TX RJ45 single port (1X1) Tab-down with or without LEDs integrated magnetics connector
(ICM), designed to support applications, such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM),
and PC applications.
Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
Internal magnetics are 100% electrically tested for HI-POT
and functionality
Internal magnetics options available
Meets or exceeds IEEE 802.3ab standard for 100Base-T
350 µH minimum OCL with 8 mA bias current
High performance for maximum EMI suppression
Minimum 1500 Vrms isolation per IEEE 802.3 requirement

Related Part

TG05-1505NURL	43223-8306	XFATM2MB-CTxu1-4M	13F-14
TG05-S001NURL	43223-8307	XFATM2MB-CTYG1-4M	13F-15
TG37-1505NURL	43249-6001	XFATM2PB-CLxu1-4MS	13F-16
TG37-S001NURL	43249-6004	XFATM2S-CAxu1-4MS	13F-15
TG39-1505NURL	43249-6101	XFATM2S-CLGRYR1-4MS	13F-17A
TG83-1505NURL	43249-6104	XFATM2S-CLxu1-4MS	13F-18
TG91-1505NURL	43249-6107	XFATM2S-CLZGY1-4MS	13F-19
TG04-TDK2NSRL	43249-6501	XFATM2SA-CLxu1-4MS	13F-1A
TG04-TDK1N1RL	43249-6504	XFATM2SB-CLxu1-4MS	13F-21
TG05-2004NARL	43249-8001	XFATM2SD-CLGRYR1-4MS	13F-22
TG05-2004NCRL	43249-8004	XFATM2SD-CLxu1-4MS	13F-22A
TG04-4004NARL	43249-8010	XFATM2SD-CLZGY1-4MS	13F-23
TG04-4004NCRL	43249-8101	XFATM2SD-CTxu1-4M	13F-23A
LG01-0346N1LF	43249-8102	XFATM2TVS-CLxu1-2MS	13F-23B
LD01-0166F4LF	43249-8104	XFATM2X-CLxu1-4S	XFATM13-STACK16-4
LD01-0366F4LF	43249-8105	XFATM2Y -CLxu1-2MS	XFATM13-STACK2-4
