Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJMG201K21120FR
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Tray
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Series: |
Amphenol Commercial Products |
Data Rate: |
1Gb/s |
Number Of Positions/Contacts Per Port: |
8P8C |
Latch Orientation: |
Tab Up |
Termination Style: |
Through Hole |
Mounting Angle: |
Right Angle |
Series: |
Amphenol Commercial Products |
Data Rate: |
1Gb/s |
Number Of Positions/Contacts Per Port: |
8P8C |
Latch Orientation: |
Tab Up |
Termination Style: |
Through Hole |
Mounting Angle: |
Right Angle |

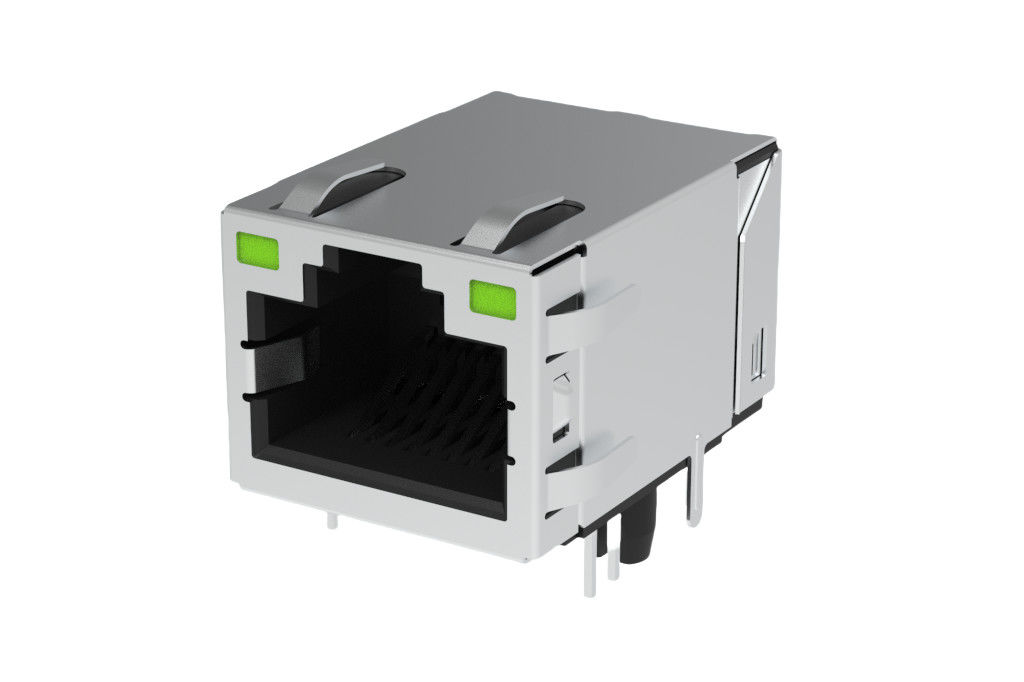

The RJMG201K21120FR Modular Jack with Integrated Magnetics is fully RoHS compliant. Designed to meet IEEE802.3ab standards, this Magnetic Jack operates within a standard temperature range of 0°C to 70°C, and an extended range of -40°C to 85°C. Low mode conversion and improved EMI performance for reliable data transmission. With features like low mode conversion, improved EMI performance, and easy PCB assembly, it provides a comprehensive solution for networking applications requiring robust performance and ease of installation. It features Green-Green LED options and has shielded and EMI variants for enhanced protection against interference.
| Product Status | Active | Series | RJMG |
| USOC Codes | RJ45 | Type | Modular Jack With Integrated Magnetics |
| Termination Method | Solder | Body Orientation | Right Angle |
| Operating Temperature | 0°C ~ 70°C | Applications | 10/100/1000 Base-T, AutoMDIX |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Product Length | 16.26 mm | Product Depth | 17.02 mm |
| Product Height | 17.02 mm | Number of Ports | 1Port |
| Number of Rows | 1Row | LED Color | Green - Green |
| Performance Category | Cat 6a | Features | Board Lock |
| Height Above Board | 0.670 (17.02mm) | Package | Tray |
Contact Material: Phosphor Bronze, plated with a minimum of 1.27μm (50u") Gold over Nickel on the mating area and 2.54μm (100u") Matte Tin over Nickel on the contact tails.
Housing Material: Liquid Crystal Polymer (LCP), a high-temperature thermoplastic material with a UL 94V-0 flammability rating.
Shield Material: Stainless Steel.
Plating (Contact Area): 1.27μm (50μin) Gold.
Housing Color: Black.
Contact Finish: Gold.
LEDs Material: Epoxy Lens, Tin Plated Steel Tails.
PCB Material: FR4 Fiberglass, Lead-Free.
