Product Details
Place of Origin: CHINA
Brand Name: LINK-PP
Certification: ROHS,ISO,REACH,UL Certified
Model Number: 85732-1008
Payment & Shipping Terms
Minimum Order Quantity: Free Samples Available
Price: $0.48-$1.28
Packaging Details: Embossed Tape on Reel
Delivery Time: 3-6 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, T/T
Supply Ability: 6500Kpcs Per Month
Magnetics: |
With Magnetics |
Port Configuration: |
2 X 6 (Stacked) |
Number Of Positions/Contacts: |
8P8C |
Mounting: |
Through Hole Mount |
LED L / R Color: |
Green, Yellow / Green, Yellow |
Shielding: |
Shielded |
LAN Category: |
Cat5, Cat5e |
Tab Direction: |
Tab Up And Tab Down |
Magnetics: |
With Magnetics |
Port Configuration: |
2 X 6 (Stacked) |
Number Of Positions/Contacts: |
8P8C |
Mounting: |
Through Hole Mount |
LED L / R Color: |
Green, Yellow / Green, Yellow |
Shielding: |
Shielded |
LAN Category: |
Cat5, Cat5e |
Tab Direction: |
Tab Up And Tab Down |

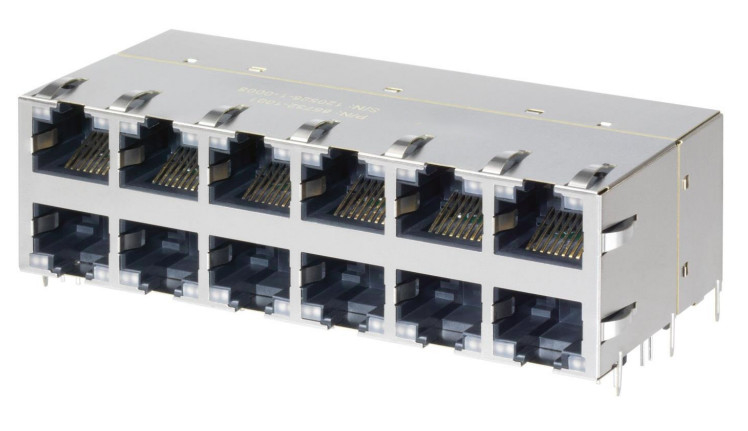

★ Fully shielded RJ-45 connector with 2x6 multiple ports.
★ Integrated Ethernet magnetics with Bob Smith termination with isolation capacitor.
★ Compatible with various Gigabit Ethernet transceiver ICs (PHY’s).
★ Compliant with IEEE 802.3ab standard.(1000 Base-T).
★ Ethernet Transformers according to IEEE802.3 (PoEplus) for PSE applications.
★ Connector intended to be mated with plugs according to IEC 60603-7.
★ Dielectric isolation of 2250VDC
★ Two or four LEDs per port where applicable, (two single-color or bi-color per position).
★ Operating temperature: 0°C to 70°C, external ambient temperature.
| Description | Gigabit Magnetic Jack, Enabled PSE PoE+ 2x6, with LEDs Left/Green-Yellow and Right/Green-Yellow |
| Part Number | 85732-1008 |
| Category | RJ45 Magnetic Jacks/ Magjack |
| Magnetic |
Yes |
| Power over Ethernet (PoE) | PoE+ |
| Port Configuration | 2x6 |
| Positions / Loaded Contacts | 8P8C |
| Termination Interface Style | Through Hole |
| Performance Category | Cat5, Cat5e |
| Shielded | Yes |
| Orientation | Right Angle (Side Entry) |
| Inverted / Top Latch | Yes |
| Lightpipes / LEDs | LEDs |
| Jack Height | 25.46mm |
| Metal Material | Brass, Copper Alloy |
| Plating Mating Material | Gold |
| PCB Locator | Yes |
| PCB Retention | Yes |
| Pitch - Mating Interface | 1.27mm, 2.54mm |
| Pitch - Termination Interface | 1.27mm, 2.54mm |
| Recommended PCB Thickness | 3.20mm |
| Operating Temperature Range | 0° to +70°C |
| Durability (mating cycles max) | 750 |
| Net Weight | 4/4 |
| Operating Temperature Range | 76.000/g |
| Packaging Type | Tray |
| CAT 5 |
