Form Factor: |
SFP |
Part Number: |
SAA0-ZZ-0001 |
Ports: |
2X1 |
Light Pipe: |
4-Light Pipe |
Heat Sink: |
Without |
Termination: |
Press-Fit |
Form Factor: |
SFP |
Part Number: |
SAA0-ZZ-0001 |
Ports: |
2X1 |
Light Pipe: |
4-Light Pipe |
Heat Sink: |
Without |
Termination: |
Press-Fit |

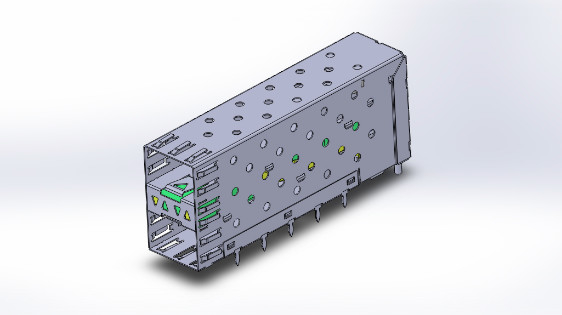

The SAA0-ZZ-0001 2X1 SFP Cage Assembly is designed to meet electrical, mechanical, and environmental performance requirements for GIGA applications. Featuring a Press-Fit Termination design with outer and inner 4 LightPipes, this SFP cage ensures reliable performance in various environments with an operating temperature range of -40 to 85°C. The Contact Plating of 15μ" minimum Gold guarantees excellent conductivity. With compact dimensions of 63.5mm in length, 15.38mm in width, and 25.5mm in height.
|
Part Number |
2149157-1 |
|---|---|
|
Series |
SFP |
|
Number of Ports |
2x1 ports |
|
Type |
Press-Fit |
|
Included Lightpipe |
YES |
| EMI Fingles | With |
| Heat Sink | Without |
|
Body Orientation |
Right Angle |
| Recommended Minimum PCB Thickness | 1.57 mm |
|
Operating Temperature Range |
-40 – 85 °C |
| Contact Current Rating | 0.5A (per contact) |
|
Insulation Resistance |
100MΩ min. |
| Dielectric Withstanding Voltage | 300VDC @1min. |
| Insertion force | 40N MAX. |
| Extraction force | 12.5N MAX. |
|
Durability |
100 cycles MIN. |
|
Cage Retention (Latch strength) |
90N Min |
Notes:
1. Recommended thru-hole plating options include HASL, OSP, or immersion (gold, silver, or tin).
2. A minimum PCB thickness of 1.57mm is required for single-sided USB applications.
3. The hatched area serves as the placement zone for the LED, which should be centered within this designated zone for optimal positioning and functionality.
