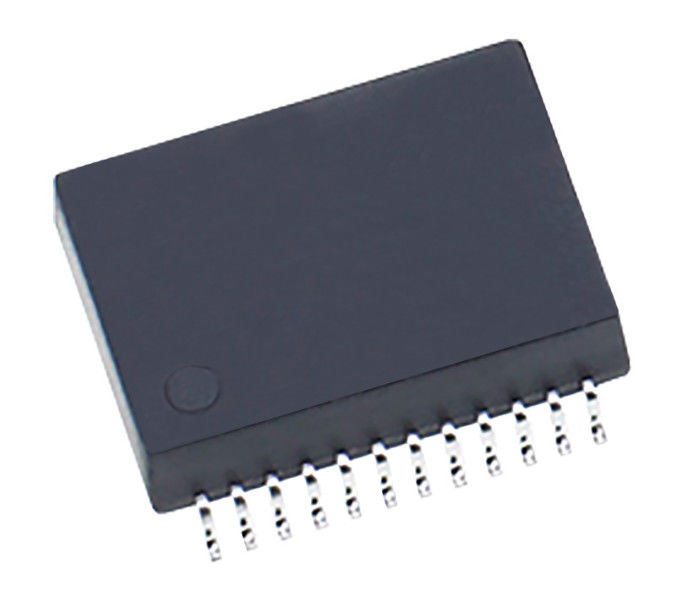

Model Number: S558-5500-JB
Payment & Shipping Terms
Minimum Order Quantity: 18/864pcs
Price: $0.9-$2.3
Packaging Details: Tape and Reel
Delivery Time: 5-10 working days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Part Number: |
S558-5500-JB |
Number Of Ports: |
Single |
Data Rate: |
1G、2.5G |
PoE: |
100W PoE |
Operating Temperature Range: |
-40 To 85℃ |
RoHS: |
RoHS-certified |
Pin Count: |
24 |
Pin Pitch: |
0.05 Inch |
CM Filter: |
3 Wire |
Mounting Type: |
SMT |
Part Number: |
S558-5500-JB |
Number Of Ports: |
Single |
Data Rate: |
1G、2.5G |
PoE: |
100W PoE |
Operating Temperature Range: |
-40 To 85℃ |
RoHS: |
RoHS-certified |
Pin Count: |
24 |
Pin Pitch: |
0.05 Inch |
CM Filter: |
3 Wire |
Mounting Type: |
SMT |
| Part Number | S558-5500-JB |
| Part Status | Active |
| Transformer Type | LAN 1/2.5 GBase-T Power Over Ethernet Transformer |
| Mounting Type | Surface Mount |
| Number of Terminals | 24 |
| LAN Transformer Length | 17.53 mm |
| LAN Transformer Depth | 15.24 mm |
| LAN Transformer Height | 5.71 mm |
| Application | 1GBase/2.5GBaseT, 100W PoE |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tape and Reel |
| Electrical Specifications @ 25℃ | |
| Turns Ratio (±2%) |
1CT:1CT |
| OCL (@100KHz/100mV) | 180uH MIN WITH 8mA DC BIAS 120uH MIN WITH 23mA DC BIAS |
| INTERWINDING CAPACITANCE, Cww | 30pF Max @1KHz/20mV |
| DCR | 1A MAX 57VDC CONTINUOUS |
| HI-POT | LEAKAGE CURRENT LESS THAN 1mA AT 1500VAC |
| Insertion Loss | 1-100MHz= -1.odB Max |
| Crosstalk |
-35dB Min @1MHz to 40MHz |
| CMRR |
-25dB Min @1MHz to 150MHz |
| Return Loss |
-20dB Min @1MHz to 40MHz |
