Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: UL,ISO,ROHS,REACH
Model Number: 441930003
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: negotiable
Packaging Details: Tray
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5KK/Month
Status: |
Active |
Product Name: |
Surface Mount RJ45 Jack |
Magnetic: |
Without |
Performance Category: |
3 |
Power Over Ethernet (PoE): |
N/A |
Type: |
Low Profile |
Status: |
Active |
Product Name: |
Surface Mount RJ45 Jack |
Magnetic: |
Without |
Performance Category: |
3 |
Power Over Ethernet (PoE): |
N/A |
Type: |
Low Profile |

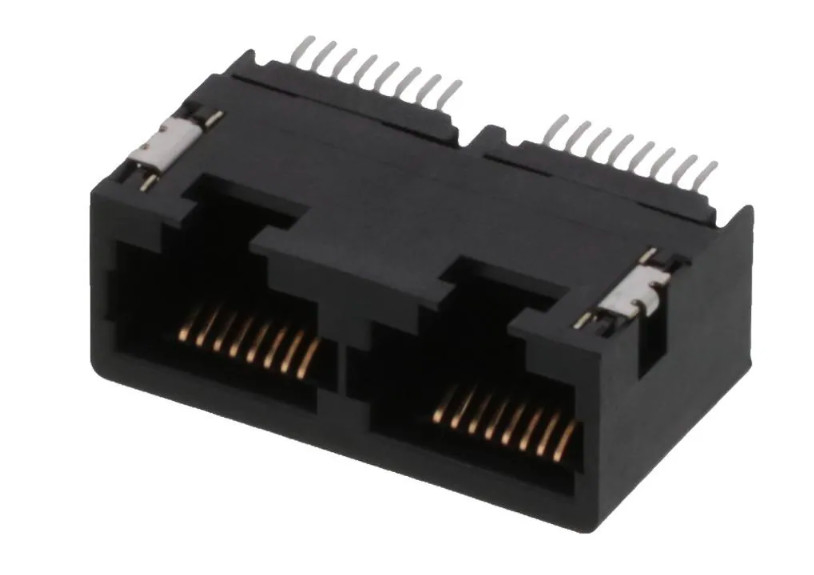

1. Design & Structure:
Right-angle (side entry) and low-profile for space-efficient PCB installation.
Black high-temperature thermoplastic housing, compliant with UL 94V-0 flammability rating.
1x2 port configuration with 8 loaded contacts.
2. Electrical Specs:
1.5A max current per contact; rated for 125V, unshielded.
3. Materials:
Phosphor bronze metal contacts; gold-plated mating surfaces, tin-plated terminations.
4. Durability: 500 mating cycles.
5. Packaging & Mounting:
Embossed tape on reel for automated assembly; surface-mount compatible (1.02mm mating pitch, 1.27mm termination pitch).
| Category | Parameter | Value |
|---|---|---|
| Electrical | Current - Maximum per Contact | 1.5A |
| Shielded | No | |
| Voltage - Maximum | 125V | |
| Physical | Color - Resin | Black |
| Durability (mating cycles max) | 500 | |
| Flammability | 94V - 0 | |
| Inverted / Top Latch | No | |
| Jack Height | 11.80mm | |
| Lightpipes/LEDs | None | |
| Material - Metal | Phosphor Bronze | |
| Material - Plating Mating | Gold | |
| Material - Plating Termination | Tin | |
| Material - Resin | High Temperature Thermoplastic | |
| Net Weight | 5.175/g | |
| Orientation | Right Angle (Side Entry) | |
| Packaging Type | Embossed Tape on Reel | |
| PCB Retention | Yes | |
| Pitch - Mating Interface | 1.02mm | |
| Pitch - Termination Interface | 1.27mm | |
| Plating min - Mating | 1.270μm | |
| Plating min - Termination | 2.540μm | |
| Port Configuration | 1x2 | |
| Positions / Loaded Contacts | 8/8 | |
| Temperature Range - Operating | -40° to +80°C | |
| Termination Interface Style | Surface Mount | |
| Wire/Cable Type |
N/A |
