Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: RoHS Compliant
Model Number: 74941300
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.7-$1.3
Packaging Details: Tape & Reel
Delivery Time: 1-2 Weeks
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 5KK/Month
Status: |
Active |
Number Of Ports: |
1 |
Insulation Test Voltage: |
4300V DC |
Working Voltage: |
1000V DC |
Creepage Distance: |
6mm |
Length: |
7.6mm |
Width: |
9.5mm |
Height: |
5.5mm |
Status: |
Active |
Number Of Ports: |
1 |
Insulation Test Voltage: |
4300V DC |
Working Voltage: |
1000V DC |
Creepage Distance: |
6mm |
Length: |
7.6mm |
Width: |
9.5mm |
Height: |
5.5mm |
| Product Series |

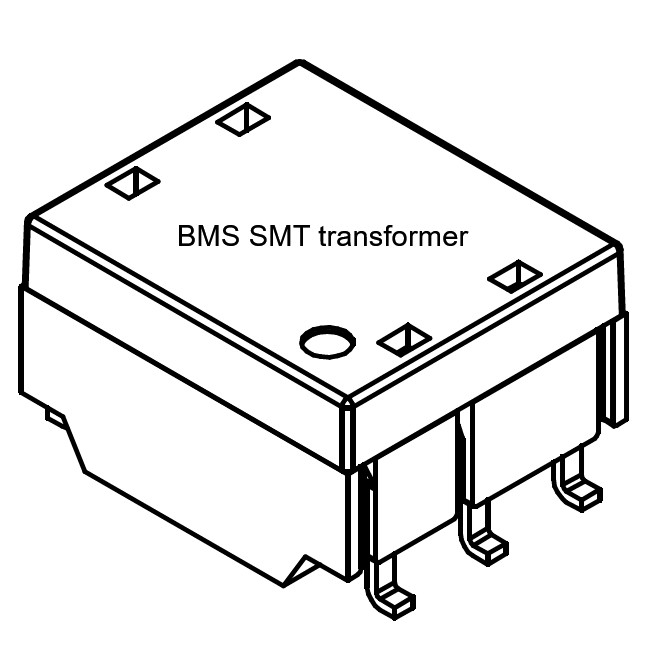

WE-BMS Transformer for Battery Management Systems |
|---|---|
| Termination Style |
SMD/SMT |
| Mounting Type | Surface Mount |
| Inductance | 450µH max. 150µH min. |
| Number of Channels | 1 Channel |
| Turns Ratio - Primary: Secondary | 1:1 |
| PINs | 6 PINs |
| Number of Ports | 1 Port |
| Operating Temperature | -40 up to +125 °C |
| Storage Conditions | < 40 °C ; < 75 % RH (in original packaging) |
| Moisture Sensitivity Level (MSL) | 1 |
| Base Material | DAP WH-9100 94V-0 CTI 0 |
| Cover Material | LCP E4008 94V-0 CTI 3 |
| Wire Material | FIW-6 |
| Service | OEM&ODM |
Isolation: 4300 V(DC) From Pri to Sec
SMD 6PINS 1CT:1CT
