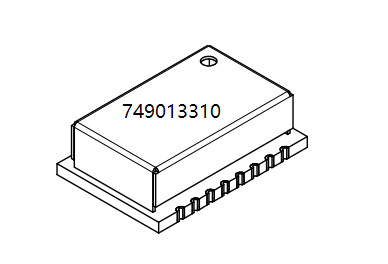

Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: RoHS Compliant
Model Number: 749013310
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Tape & Reel
Delivery Time: 2 weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Part Number: |
749013310 |
Series: |
WE-AQ Transformer |
Insulation Test Voltage: |
4500 VAC (1 Min) |
Inductance: |
180μH |
Turns Ratio (N1:N2:N3): |
1:1 |
Mounting Style: |
SMT |
Part Number: |
749013310 |
Series: |
WE-AQ Transformer |
Insulation Test Voltage: |
4500 VAC (1 Min) |
Inductance: |
180μH |
Turns Ratio (N1:N2:N3): |
1:1 |
Mounting Style: |
SMT |
| Product Name | LAN Transformers |
| Part Number | 749013310 |
| Product Category | LAN AQ Transformers Series |
| Number of Ports | 1 |
| Inductance | 180 uH |
| Data Rate | 10/100BASE-T |
| Length | 12.7 mm |
| Width | 8.67 mm |
| Height | 4 mm |
| Isolation Voltage | 1.5 kV (RMS) |
| Mounting Type | Surface Mount (SMT) |
| Operating Temperature | -40°C to +85°C |
| Improved Common Mode Rejection Ratio (CMRR) | No |
| Maximum Operating Temperature | + 85°C |
| Minimum Operating Temperature | - 40°C |
| RoHS Compliance | RoHS Compliant |
| Packaging | Reel |
