Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: UL,ISO,ROHS,REACH

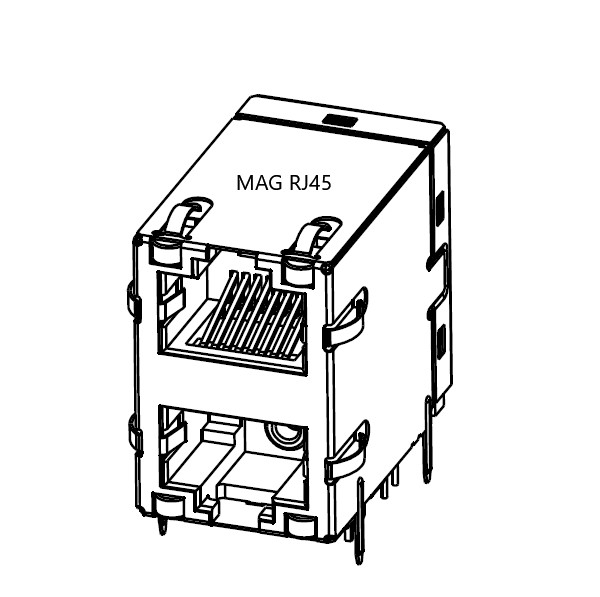

Model Number: 1-1840052-1
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Tray
Delivery Time: 3-7 days
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6000000/Month
Number Of Ports: |
2X1 |
Speed: |
1000BASE-T |
LED Color: |
Green/Green |
Operating Temperature: |
0 ~ +70ºC |
EMI Tabs: |
With |
Mounting Type: |
Through Hole |
Number Of Ports: |
2X1 |
Speed: |
1000BASE-T |
LED Color: |
Green/Green |
Operating Temperature: |
0 ~ +70ºC |
EMI Tabs: |
With |
Mounting Type: |
Through Hole |
| Parameter | Details |
|---|---|
| Application | 10/100/1000 BASE-T |
| Impedance | 100 ohms |
| Turns Ratio (Chip: Cable) | 1:1, all four pairs |
| Open Circuit Inductance (OCL) | Min 350μH @100kHz, 0.1VRMS, 8mADC bias from 0°C to 70°C, all four pairs |
| All Four Pairs Bi-Directional | Performance @ 25°C |
| Insertion Loss (IL) | Max -1.1dB from 0.5MHz to 100MHz |
| Return Loss (RL) | Min 18dB from 0.5MHz to 40MHz; Min 12 - 20LOG(f/80) dB from 40.1MHz to 100MHz |
| Crosstalk Attenuation | Min 35dB from 0.5MHz to 40MHz; Min 33 - 20LOG(f/50) dB from 40.1MHz to 100MHz |
| Common Mode Rejection Ratio (CMRR) | Min 30dB from 0.5 MHz to 100 MHz |
| Isolation Voltage | 2250VAC (Max) for 60 seconds with a rise time of 500V/sec and all ports connected |
| Operating Temp | From 0°C to +70°C |
