Home > products > RJ45 Modular Jack > Tab Down 615108150221R Shielded Modular Jack THR Mid-Mount

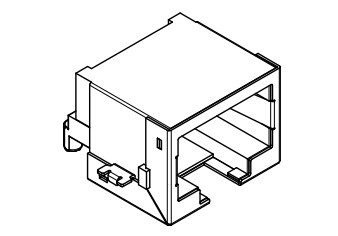

Tab Down 615108150221R Shielded Modular Jack THR Mid-Mount

Product Details

Place of Origin: CHINA

Brand Name: LINK-PP

Certification: UL,ISO,ROHS,REACH

Model Number: 615108150221R

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: $0.09-$3.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

615108150221R

,

Modular Jack Tab Down

,

THR RJ45 Modular Jack

Connector Gender:
Jack (Female)
Number Of Pins:
8P8C
Tab:
Tab Down
Shielding:
Shielded
Number Of Ports:
1
Mounting Type:
Mid Mount, Through Hole
Orientation:
90° Angle (Right)
Termination:
Solder
Operating Temperature:
-40°C ~ 85°C
RoHS:
RoHS Compliant
Application System:
CAT 3
Durability:
750 Mating Cycles
Connector Gender:
Jack (Female)
Number Of Pins:
8P8C
Tab:
Tab Down
Shielding:
Shielded
Number Of Ports:
1
Mounting Type:
Mid Mount, Through Hole
Orientation:
90° Angle (Right)
Termination:
Solder
Operating Temperature:
-40°C ~ 85°C
RoHS:
RoHS Compliant
Application System:
CAT 3
Durability:
750 Mating Cycles
Tab Down 615108150221R Shielded Modular Jack THR Mid-Mount

615108150221R Material Properties :

Product Type

8P8C RJ45 Connector

Insulator Material

Liquid Crystal Polymer (LCP)

Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
Shielding Material Brass
Shielding Plating Nickel (Ni)


Electrical Properties:

Part Number 615108150221R
Rated Current 1.5A
Working Voltage 125V (AC)
Withstanding Voltage Pin to Pin 1000V (AC) 1min
Withstanding Voltage Shielding to Pin 1500V (AC) 1min
Contact Resistance 20mΩ max.
Insulation Resistance 1000MΩ min.


615108150221R Datasheet-Recommended Hole Pattern:

Tab Down 615108150221R Shielded Modular Jack THR Mid-Mount 0
