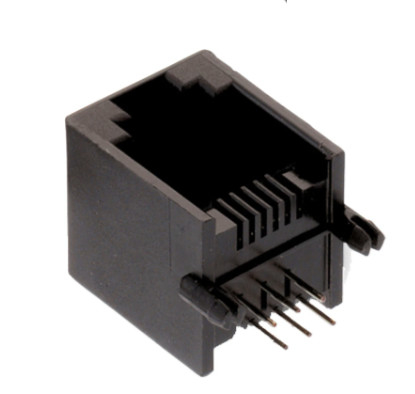

615004138421 Side Entry RJ45 Jack Without LED THT Mounting

Product Details

Place of Origin: CHINA

Brand Name: LINK-PP

Certification: UL,ISO,ROHS,REACH

Model Number: 615004138421

Payment & Shipping Terms

Minimum Order Quantity: Free Samples Available

Price: Negotiable

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

6P4C RJ45 Modular Jack

,

6P4C RJ45 Connector Without LED

,

615004138421

Number Of Pins:
6P4C
LEDs:
Without LED
EMI Finger:
NO
Shielding:
Unshielded
Number Of Ports:
Single Port
Mount:
THT
Operating Temperature:
-40 °C Up To +85 °C
Durability:
500 Mating Cycles
Number Of Pins:
6P4C
LEDs:
Without LED
EMI Finger:
NO
Shielding:
Unshielded
Number Of Ports:
Single Port
Mount:
THT
Operating Temperature:
-40 °C Up To +85 °C
Durability:
500 Mating Cycles
615004138421 Side Entry RJ45 Jack Without LED THT Mounting

615004138421 6P4C Jack Technical Specifications:



Product Series

RJ45 without Magnetics

Part Number 615004138421
Shielding Unshielded
Connector Type Modular Jack (6P4C)
Connector Orientation Right Angle
LED/Light Pipes Without
Port Configuration 1x1 (Port)
Number of Positions / Loaded Contacts (per Port) 6P4C
Magnetics Without Magnetics
LAN Category CAT 3
Operating Temperature Range -40°C to +85°C
Connector Mounting Through-Hole Mount

615004138421 Materials:

1. Insulator Material: PBT

A durable thermoplastic material known for its excellent mechanical strength, heat resistance, and electrical insulation properties.

2. Insulator Flammability Rating: UL94 V-0

Indicates high flame-retardant performance, ensuring safety by self-extinguishing flames within 10 seconds without dripping.

3. Insulator Color: Black

Provides a sleek appearance and matches standard industrial color requirements.

4. Contact Material: Copper Alloy

Offers superior electrical conductivity and mechanical robustness for reliable signal transmission.

5. Contact Plating: Gold

Gold plating ensures excellent corrosion resistance, low contact resistance, and enhanced durability in harsh environments.

6. Contact Type: Stamped

Stamped contacts allow for precise, consistent manufacturing and are cost-effective for high-volume production.

615004138421 Datasheet - Recommended Hole Pattern:

615004138421 Side Entry RJ45 Jack Without LED THT Mounting 0
