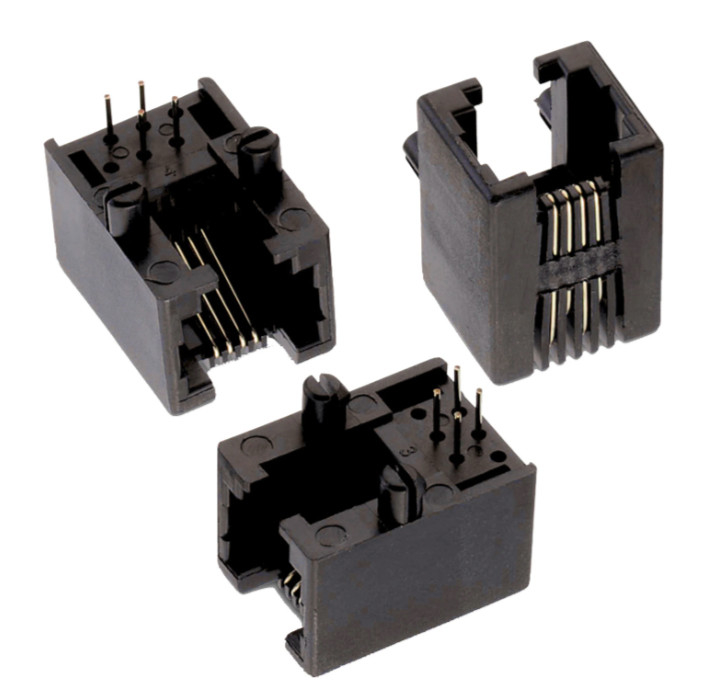

615004141121 Through Hole 6P4C Connector Unshielded Modular Jack

Product Details

Place of Origin: Guangdong, China

Brand Name: LINK-PP

Certification: RoHS Compliant

Model Number: 615004141121

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: $0.3-$0.9

Packaging Details: Tray

Delivery Time: 3-7 days

Payment Terms: D/A, D/P, Western Union, MoneyGram

Supply Ability: 5KK/Month

Get Best Price
Highlight:

615004141121

,

Through Hole 6P4C Connector

,

6P4C Modular Jack

Series:
6P4C Modular Jack Tab Down
Part Number:
615004141121
Insulator Material:
PBT
Contact Material:
Copper Alloy
Contact Plating:
Gold
Contact Type:
Stamped
Series:
6P4C Modular Jack Tab Down
Part Number:
615004141121
Insulator Material:
PBT
Contact Material:
Copper Alloy
Contact Plating:
Gold
Contact Type:
Stamped
615004141121 Through Hole 6P4C Connector Unshielded Modular Jack

Product Overview of 615004141121 RJ11 JACKS

This high-quality 6P4C (6 Position 4 Contact) modular jack is designed for reliable telecommunication and low-voltage applications. This female (jack) connector features a right-angle through-hole mounting design with solder termination and is suitable for various electronic devices, such as Telecom Equipment (RJ11 telephone jacks), Analog Modems and fax Machines, and Industrial Control Systems.


Key Features

  1. Standard 6P4C configuration (commonly used in telephone/RJ11 applications)
  2. Durable construction: Copper alloy contacts with gold plating for reliable conductivity
  3. Robust design: UL 94 V-0 flammability-rated housing
  4. Space-efficient: Right-angle mounting saves PCB space
  5. High reliability: 500 MΩ insulation resistance ensures signal integrity
  6. Wide temperature range: Operates from -40°C to +85°C
  7. Safety compliant: 1.5A current and 120V AC rating

Technical Specifications

Category Specification
Connector Type Modular Jack (Female)
Configuration 1x1 (Single Port)
Contacts 6 Position, 4 Contact (6P4C)
Mounting Through Hole, Right Angle
Termination Solder
Electrical Rating 1.5A, 120V AC
Contact Material Copper Alloy with Gold Plating
Insulation Resistance 500 MΩ
Flammability Rating UL 94 V-0
Operating Temperature -40°C to +85°C
Shielding Unshielded
Color Black
Orientation Tab Down
Packaging Tray

615004141121 Datasheet:

615004141121 Through Hole 6P4C Connector Unshielded Modular Jack 0

Wave Soldering Compatibility

A wave solder-compatible 6P4C modular jack 615004141121 is designed for high-volume PCB assembly. This right-angle through-hole connector is optimized for wave soldering processes, ensuring reliable electrical connections in telecommunication and low-voltage applications. 615004141121 Model is specifically designed for wave soldering manufacturing processes:

Process: PCB passes over a molten solder wave, forming reliable solder joints via capillary action

Benefits:

  • High-throughput assembly for mass production

  • Consistent solder fillets for strong mechanical connections

  • Cost-effective for through-hole component soldering

(Note: Recommended solder temperature profiles should be verified with the manufacturer.)
