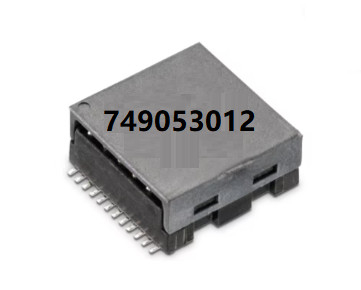

749053012 LAN Magnetics 10Gbit Base-T Transformer Modules

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,REACH,ISO

Model Number: 749053012

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: $1.85

Packaging Details: Tray

Delivery Time: 1-2 Weeks

Payment Terms: TT, NET30/60/90 Days

Supply Ability: 5KK/Month

Get Best Price
Highlight:

749053012

,

Ethernet Transformer Manufacturers

,

Wurth Ethernet Transformer

Type:
LAN Transformer Modules
Frequency Range:
100 KHz To 500 MHz
Inductance:
200 UH
Isolation Voltage:
1.5 KVAC
Termination Style:
SMT
Operating Temperature:
-40 °C Up To +85 °C
Data Rate:
10GBASE-T
PoE Support:
PoE (up To 350 MA)
Type:
LAN Transformer Modules
Frequency Range:
100 KHz To 500 MHz
Inductance:
200 UH
Isolation Voltage:
1.5 KVAC
Termination Style:
SMT
Operating Temperature:
-40 °C Up To +85 °C
Data Rate:
10GBASE-T
PoE Support:
PoE (up To 350 MA)
749053012 LAN Magnetics 10Gbit Base-T Transformer Modules

The 749053012 10GBASE-T LAN transformer is designed to meet the demands of next-generation Ethernet applications. This surface-mount transformer ensures robust signal integrity and reliability for high-speed data transmission.

Electrical Properties (749053012 Transformer)

Property Test Conditions Value Unit Tolerance
Inductance (OCL) 100kHz / 100mV @ 8mA DC-Bias 200 µH min.
Turns Ratio (TR) 100kHz / 100mV 1:1 ±2%
Insertion Loss (IL) 100kHz–1MHz -3.0 dB max.
  1MHz–250MHz -1.0 dB max.
  250MHz–500MHz -3.0 dB max.
Return Loss (RL) 1–40MHz -20.0 dB min.
  100MHz -16.0 dB min.
  200MHz -13.0 dB min.
  250MHz -11.2 dB min.
  400MHz -10.0 dB min.
  500MHz -8.0 dB min.
Common to Differential Mode Rejection (CDMR) 1MHz–100MHz -35.0 dB min.
  100MHz–250MHz -30.0 dB min.
  250MHz–500MHz -25.0 dB min.
Common to Common Mode Rejection (CMRR) 1MHz–100MHz -35.0 dB min.
  100MHz–300MHz -30.0 dB min.
  300MHz–500MHz -25.0 dB min.
Crosstalk (CT) 1MHz–100MHz -40.0 dB min.
  100MHz–500MHz -30.0 dB min.
