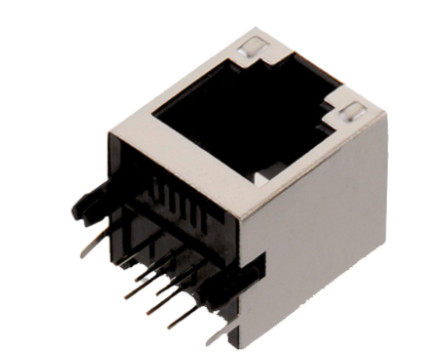

615006143221 Shielded 6P6C Connector Tab Up Female Modular Jack

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: RoHS Compliant

Model Number: 615006143221

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Price: Negotiable

Packaging Details: Tray

Delivery Time: 3-7 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000000/Month

Get Best Price
Highlight:

615006143221

,

6P6C Female Modular Jack

,

6P6C Modular Jack

Connector Type:
6P6C Modular Jack
Mount:
THT
Number Of Ports:
1x1
Orientation:
90° Right Angle (Horizontal)
Tab Direction:
Up
Shielding:
Shielded
LED Indicators:
None
Application-Lan:
NON PoE
Connector Type:
6P6C Modular Jack
Mount:
THT
Number Of Ports:
1x1
Orientation:
90° Right Angle (Horizontal)
Tab Direction:
Up
Shielding:
Shielded
LED Indicators:
None
Application-Lan:
NON PoE
615006143221 Shielded 6P6C Connector Tab Up Female Modular Jack

The 615006143221 is a shielded 6P6C Female Modular Jack designed for through-hole mounting with a 90° right-angle orientation and tab-up configuration. It is suitable for non-PoE Ethernet applications and offers reliable performance in various applications, such as telecommunications equipment, networking devices, and industrial control systems.



Product Specifications

Part Number 615006143221
Connector Type Modular Jack (6P6C)
Number of Ports 1x1 (Single Port)
Mounting Style Through-Hole (THT)
Orientation 90° Right Angle (Horizontal)
Tab Direction Up
Shielding Shielded
LED Indicators None
Operating Temperature Range -40°C to +85°C
Dimensions (L x W x H) 12.85 mm x 13.50 mm x 14.75 mm
Electrical Properties
Working Voltage 120 V (AC)
Withstanding Voltage 1000 V (AC)
Contact Resistance 20 mΩ
RISO 500 MΩ
Material Properties
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
Shielding Material Bronze
Shielding Plating Nickel (Ni)
Compliance RoHS Compliant
Packaging Tray



615006143221 Datasheet - Dimensions: [mm]

615006143221 Shielded 6P6C Connector Tab Up Female Modular Jack 0

615006143221 Datasheet - Recommended Hole Pattern: [mm]

615006143221 Shielded 6P6C Connector Tab Up Female Modular Jack 1
