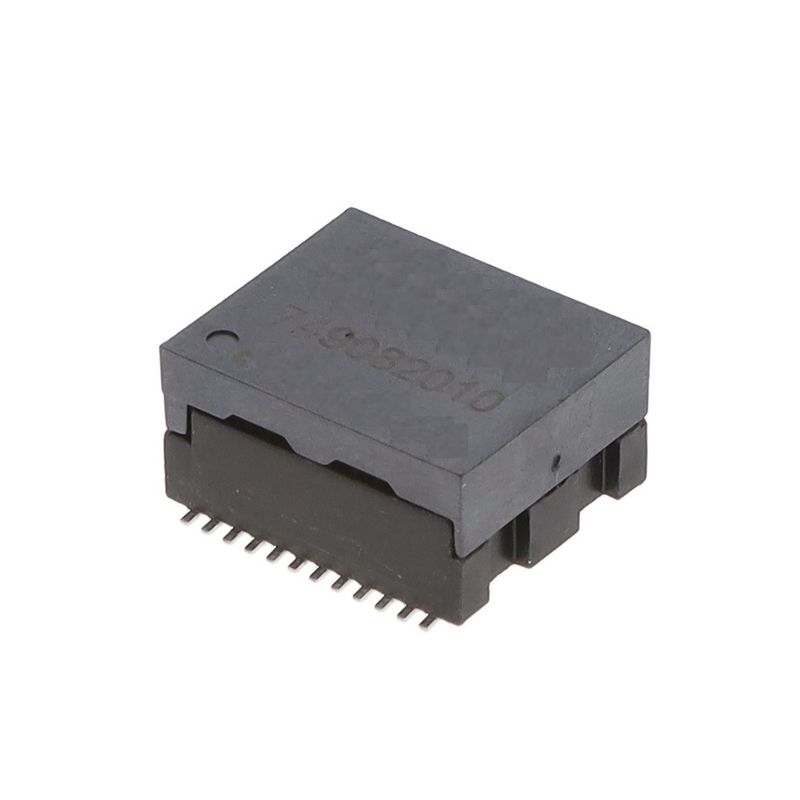

749082010 LAN Transformer Magnetic Support 4P PoE up to 1500 mA

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 749082010

Payment & Shipping Terms

Minimum Order Quantity: 200/1000 pcs

Price: $0.09-$2.3

Packaging Details: Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 5KK/Month

Get Best Price
Highlight:

749082010

,

2.5/5G Base-T LAN Magnetic

,

1500mA PoE LAN Transformer

Product Type:
PoE Transformers
Mounting:
Surface Mount (SMT)
Data Rate:
2.5G/5G BASE-T
Inductance:
120 µH (with 27mA DC Bias)
Operating Temperature:
-40°C To +85°C
Packaging:
Tape & Reel, Cut Tape
Product Type:
PoE Transformers
Mounting:
Surface Mount (SMT)
Data Rate:
2.5G/5G BASE-T
Inductance:
120 µH (with 27mA DC Bias)
Operating Temperature:
-40°C To +85°C
Packaging:
Tape & Reel, Cut Tape
749082010 LAN Transformer Magnetic Support 4P PoE up to 1500 mA

749082010 Key Specifications​:

Transformer Type 2.5G/5G BaseT LAN Magnetic
Part Number 749082010
Number of Ports Single
Profile Standard
Mounting Type Surface Mount
Turns Ratio (Primary: Secondary) 1:1
Pin Count 24
Inductance (OCL) 120 µH @ 100 kHz, 100 mV, 27 mA DC bias
Current Rating 1.5 A
Insertion Loss -3 dB
Isolation Voltage 1500 V RMS
Operating Temperature -40°C ~ 85°C
Size / Dimension(L × W × H) 18.29mm x 14.7 mm x 8.8 mm
Compliance RoHS

PoE Specifications of 749082010 Ethernet Magnetics​ :

  • Designed to support applications up to 1500mA per centre tap.
  • Designed to support applications up to 75W @ 57VDC when using two channels.
  • Designed to support applications up to 150W @ 57VDC when using four channels.

749082010​ Drawing--Schematics:

749082010 LAN Transformer Magnetic Support 4P PoE up to 1500 mA 0

749082010​ LAN Transformer Applications:

Multi-Gigabit Switches & Routers – Supports next-gen Wi-Fi backhaul (e.g., IEEE 802.11ac).
Industrial IoT (IIoT) – Reliable communication in automation and control systems.
Automotive Ethernet – High-speed data transfer in vehicle networks.
Data Center Edge Devices – Upgrades legacy 1G infrastructure to 2.5G/5G.
