Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: RoHS Compliant, REACH Compliant
Model Number: 7490140123B
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Tape & Reel (TR)
Delivery Time: 1 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 600K/Month
Series: |
SMT Transformer |
Number Of Ports: |
1 |
Pins: |
12 |
PoE: |
PoE (up To 350 MA) |
Operating Temperature: |
-40 °C Up To +85 °C |
Isolation Test Voltage: |
4500V（RMS） |
Series: |
SMT Transformer |
Number Of Ports: |
1 |
Pins: |
12 |
PoE: |
PoE (up To 350 MA) |
Operating Temperature: |
-40 °C Up To +85 °C |
Isolation Test Voltage: |
4500V（RMS） |

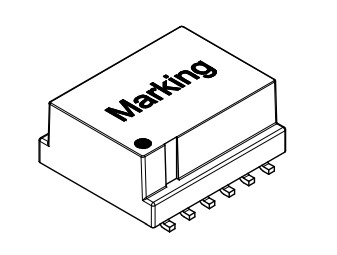

The 7490140123B is a high-performance 10/100 Base-T Surface-Mount (SMT) LAN transformer designed for industrial and automotive Ethernet applications. With a robust 4.5 kV isolation voltage, compact SMT footprint, and 350 µH inductance for EMI suppression, it delivers reliable signal integrity in harsh environments. This transformer complies with IEEE 802.3 standards, supports a 1:1 turns ratio, and operates efficiently from -40°C to +85°C, making it ideal for switches, routers, PLCs, and IoT systems.
LINK-PP offers a high-quality, fully compatible replacement for this model.
Please contact us to request the datasheet.
✔ High-Speed Ethernet – Supports 10/100 Base-T standards (up to 100 Mbps) with 1:1 turns ratio (±5% tolerance) for precise signal coupling.
✔ Robust Isolation – 4.5 kV isolation voltage (1 min, primary to secondary) ensures safety in high-voltage environments.
✔ Industrial Durability – Operates from -40°C to +85°C, ideal for harsh industrial and automotive applications.
✔ Compact SMT Design – Surface-mount package (17.1mm × 14.75mm × 8.65mm).
✔ Integrated EMI Suppression – With 350 µH inductance minimizes signal distortion.
✔ Broad Compatibility – Works with major Ethernet ICs (e.g., Microchip, Texas Instruments) and protocols (EtherCAT, PROFINET).
| Parameter | Value |
|---|---|
| Part Number | 7490140123B |
| Mounting Type | Surface Mount (SMT) |
| Ports | 1 |
| DC Resistance (Max) | 1300mΩ (transformer side) |
| Isolation Voltage | 4.5 kV (RMS, 1 min) |
| Inductance | 350 µH |
| Standards Compliance | IEEE 802.3u/ab/af/at/bt, RoHS |
