Product Details
Place of Origin: CHINA
Brand Name: LINK-PP
Certification: RoHS, Lead-free
Model Number: 1-1840052-9
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: 20% off
Packaging Details: Tape & Reel
Delivery Time: In Stock & Ready to Ship
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 500K/Month
Part Number: |
1-1840052-9 |
Connector Type: |
RJ45 With Integrated Magnetics |
Ethernet Speed: |
1000BASE-T |
LED Indicators: |
Yes |
Orientation: |
Right Angle (Horizontal) |
Shielding: |
Shielded RJ45 Jack |
Part Number: |
1-1840052-9 |
Connector Type: |
RJ45 With Integrated Magnetics |
Ethernet Speed: |
1000BASE-T |
LED Indicators: |
Yes |
Orientation: |
Right Angle (Horizontal) |
Shielding: |
Shielded RJ45 Jack |

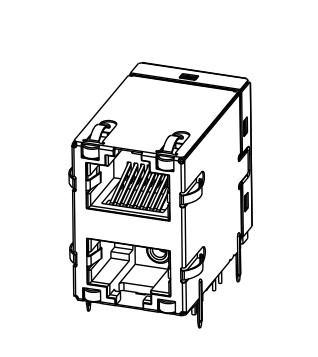

The 1-1840052-9 is a 2x1 integrated connector module (ICM) designed for Gigabit Ethernet applications, with LED indicators for network status monitoring. This compact, high-performance module integrates magnetics, RJ45 connectors, and signal conditioning into a single package, simplifying PCB design for networking equipment.
| Parameter | Specification |
|---|---|
| Model | 1-1840052-9 |
| Configuration | 2x1 (Dual-Port) |
| Data Rate | 10/100/1000 Mbps (Gigabit) |
| LED Indicators | Integrated (Link/Activity) |
| Mounting Style | Through Hole Mount |
| Connector Type | RJ45 with Integrated Magnetics |
| Standards Compliance | IEEE 802.3ab (1000Base-T) |
| Isolation Voltage | ≥1500Vrms |
| Operating Temperature | 0°C to +70°C |
| Current Rating | 1.5A per port (typical) |
| Contact Material | Gold-plated copper alloy |
| Flammability Rating | UL94 V-0 |
