Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 1-1840053-4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Number Of Ports: |
2X6 |
Series: |
RJ45 Multi Port Jack |
Magnetics: |
With |
LED Type: |
GY/GY |
PoE Rating: |
PoE+ 30W |
Cross Ref: |
LPJE265A4NL |
Number Of Ports: |
2X6 |
Series: |
RJ45 Multi Port Jack |
Magnetics: |
With |
LED Type: |
GY/GY |
PoE Rating: |
PoE+ 30W |
Cross Ref: |
LPJE265A4NL |

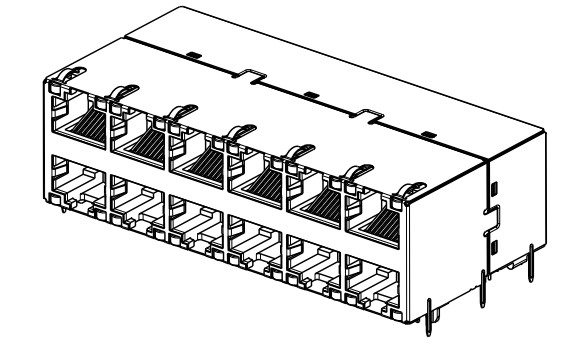

| 2x6 Port RJ45 Connector with Integrated Magnetics,Green&Yellow/Green&Yellow LED | |
| Part Number | 1-1840053-4 |
| Drwaing | contact us |
| Application-Lan | ETHERNET( PoE+) |
| Number of Ports | 2X6 |
| Ethernet Speed | 1000BASE-T |
| Port Configuration | Stacked |
| LED Option | Green&Yellow/Green&Yellow LEDS |
| Latch | TAB UP/TAB DOWN |
| EMI Tabs | No |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| Mounting Type | Through-Hole Mount |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Shielding | with Magnetics |
| Temperature | -0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| RoHS Compliant | Yes |
