Product Details
Place of Origin: CHINA
Brand Name: Link-pp
Certification: RoHS, REACH
Model Number: 1-1840055-4
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: $0.9 - $2.1
Packaging Details: Tape and Reel
Delivery Time: About 3-5 Days
Payment Terms: TT, NET30/60/90 Days, Western Union
Supply Ability: 20K Pieces per Week
Data Rate: |
1000BASE-T |
Number Of Ports: |
12 (2x6 Configuration) |
Integrated Magnetics: |
With |
Tab: |
Up And Down |
Operating Temperature: |
0 °C To +70 °C |
LED: |
GY/GY |
Port Configuration: |
Stacked |
Shield Tabs: |
No |
Data Rate: |
1000BASE-T |
Number Of Ports: |
12 (2x6 Configuration) |
Integrated Magnetics: |
With |
Tab: |
Up And Down |
Operating Temperature: |
0 °C To +70 °C |
LED: |
GY/GY |
Port Configuration: |
Stacked |
Shield Tabs: |
No |
|

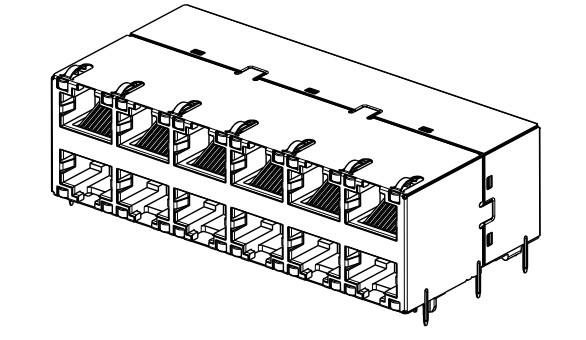

Part Number |
1-1840055-4 |
|---|---|
|
Series |
Integrated Connector Module (ICM) |
| Connector Type | RJ45 MagJack |
| Number of Ports | 2x6 |
| Ethernet Speed | 10/100/1000BASE-T |
| LED Indicators | Yes (Green/Yellow per port) |
| Tab Direction | Up and Down |
| Mounting Type | Through-Hole (THT) |
| Orientation | Right Angle (90°) |
| Shielding | Yes |
| Operating Temperature | 0°C to +70°C |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold (50µin / 1.27µm) |
| Shield Material | Brass |
| Housing Material | Thermoplastic (UL 94V-0 rated) |
| Turn Ratio(±5%) | 1:1 |
| Compliance | RoHS Compliant |
