Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 634108185521
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: $0.06-$0.9
Packaging Details: T&R
Delivery Time: Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Application System: |
CAT 3 |
Ports: |
1 |
Mounting Style: |
SMT |
Turns Ratio: |
1:1 |
PoE: |
Non-PoE |
Tab: |
Tab Down |
Connector Type: |
8P8C |
Operating Temperature: |
-40 °C To +85 °C |
Application System: |
CAT 3 |
Ports: |
1 |
Mounting Style: |
SMT |
Turns Ratio: |
1:1 |
PoE: |
Non-PoE |
Tab: |
Tab Down |
Connector Type: |
8P8C |
Operating Temperature: |
-40 °C To +85 °C |

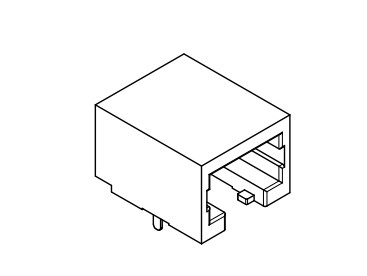

A low-profile, unshielded 8P8C modular jack designed for Surface Mount Technology (SMT) applications. 634108185521 connector offers reliable performance in telecommunications, consumer electronics, and industrial equipment.
High Durability: 750 mating cycles ensure long-term reliability.
Compact SMT Design: Low-profile horizontal mounting saves PCB space.
Wide Temperature Range: Operates in extreme environments (-40°C to +85°C).
Corrosion Resistance: Gold-plated contacts with nickel underplating.
Global Compliance: Meets RoHS, REACH, and UL standards.
| Category | Specification |
|---|---|
| Order Code | 634108185521 |
| Connector Type | 8P8C (RJ45) |
| Mounting Style | Surface Mount (SMT) |
| Orientation | Horizontal (Right Angle) |
| Tab Direction | Tab Down |
| Shielding | Unshielded (Plastic Housing) |
| Mating Cycles | 750 Cycles (Durability) |
| Operating Temperature | -40°C to +85°C |
| Parameter | Specification |
|---|---|
| Rated Current | 1.5A |
| Working Voltage | 125V AC |
| Withstand Voltage | 1000V AC (60s) |
| Contact Resistance | ≤30mΩ (max) |
| Insulation Resistance | ≥1000MΩ (min) |
| Parameter | Dimension (mm) | Tolerance |
|---|---|---|
| Width | 15.10 | ±0.15 |
| Depth | 18.10 | ±0.15 |
| Height | 11.50 | ±0.15 |
| SMT Pin Pitch | 1.27 | ±0.15 |
| Front Edge to Peg Center | 7.90 | ±0.20 |
| Mounting Peg Hole | 1.40 | ±0.15 |
| PCB Pad Width | 0.80 | ±0.15 |
| Pad Pitch | 8.89 | ±0.15 |
| Component | Material/Standard |
|---|---|
| Housing Material | PA9T (Polyamide 9T), Black |
| Flammability Rating | UL94 V-0 |
| Contacts | Copper Alloy (Gold over Nickel) |
| Environmental Compliance | RoHS, REACH, UL Approved |
| Parameter | Specification |
|---|---|
| Packaging | Tray (Standard Quantity: 100) |
| MOQ | 1 Piece |
