Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: RoHS, EU and REACH
Model Number: 615096243321
Payment & Shipping Terms
Minimum Order Quantity: Free Samples Available
Price: $0.09-$1.1
Packaging Details: Tray
Delivery Time: 3-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500K/Month
Number Of Ports: |
12 (Stacked 2x6) |
Latch: |
Tab Up&Down |
Performance Category: |
CAT 3 |
Number Of Position/contacts: |
8P8C |
Mounting Type: |
THT |
LED Option: |
Without |
EMl Tabs: |
With |
Metal-Shield: |
Shielded |
Orientation: |
Horizontal |
Number Of Ports: |
12 (Stacked 2x6) |
Latch: |
Tab Up&Down |
Performance Category: |
CAT 3 |
Number Of Position/contacts: |
8P8C |
Mounting Type: |
THT |
LED Option: |
Without |
EMl Tabs: |
With |
Metal-Shield: |
Shielded |
Orientation: |
Horizontal |

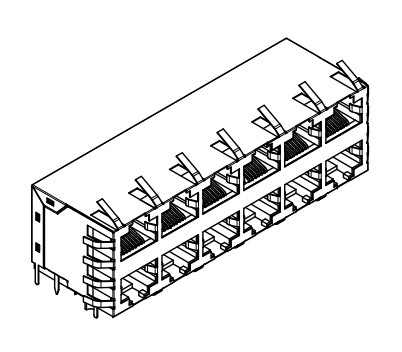

| Manufacturer | LINK-PP |
| Series | RJ45 8P8C Connectors |
| Part Number | 615096243321 |
| Connector Type | Modular Jack (RJ45) |
| Configuration | 2x6 Stacked Port, 8P8C |
| Tab Orientation | Tab Up & Tab Down |
| Mounting Type | Through-Hole (THT) |
| Shielding | Yes, with EMI panel fingers |
| Rated Current | 1.5 A |
| Working Voltage | 120 V AC |
| Withstanding Voltage | 1000 V AC for 60 seconds |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 500 MΩ at 500 V DC |
| Operating Temperature Range | -40°C to +85°C |
| Durability | 500 Mating Cycles |
| Insulator Material | PA9T (Black), UL94 V-0 Flammability Rating |
| Contact Material | Copper Alloy, Selective Gold over Nickel Plating |
| Shielding Material | Copper Alloy (Brass), Nickel Plated |
| Length | 87.04 mm |
| Width (Depth) | 25.24 mm |
| Height | 25.20 mm |
| Pin Pitch | 1.27 mm × 2.54 mm ±0.15 mm |
| Compliance | RoHS, REACH, UL |
| Applications | Switches, Routers, Servers, Industrial Ethernet Equipment |
