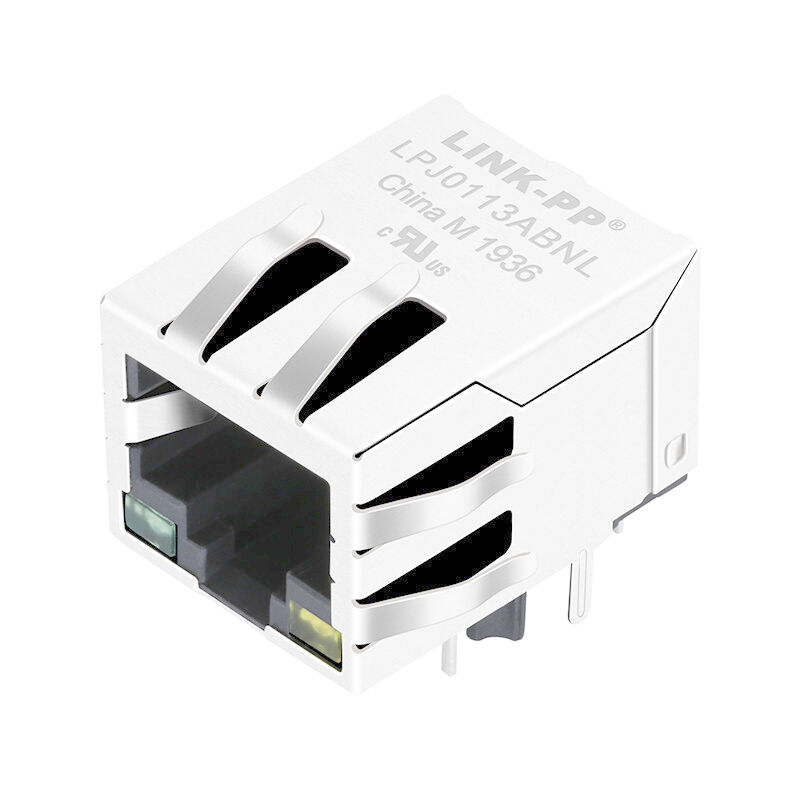

J0-0066 RJ45 Modular Jack For 10 / 100Base-T PCB Female LPJ0113ABNL

J0-0066 RJ45 Modular Jack For 10 / 100Base-T PCB Female LPJ0113ABNL

Quick Details

1.10/100 Base-T With LEDS

2.1X1 Tab-down

3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack

5.J0-0066 【Designing Model】== > LPJ0113ABNL 【Mass Production Model】

Description:


1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Interactive Voice Response system  , VOIP gateways setup

Competitive Advantage:

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer:

Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale.......
