Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: RoHS
Model Number: 7490240120
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: Negotiable & Discount
Packaging Details: Tape & Reel (TR)
Delivery Time: 2-4 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500K/Month
Series: |
LAN Transformer |
Inductance: |
350 UH |
Isolation Voltage: |
4 KV |
PoE: |
4PPoE (up To 350 MA) |
Minimum Operating Temperature: |
-40 °C |
Maximum Operating Temperature: |
+105 °C |
Series: |
LAN Transformer |
Inductance: |
350 UH |
Isolation Voltage: |
4 KV |
PoE: |
4PPoE (up To 350 MA) |
Minimum Operating Temperature: |
-40 °C |
Maximum Operating Temperature: |
+105 °C |

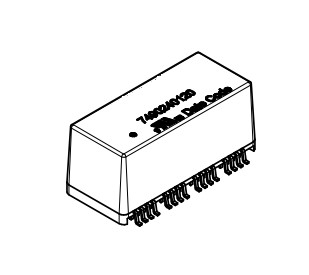

The 7490240120 1000Base-T SMT Transformer is designed for Ethernet applications requiring Power over Ethernet (PoE) capabilities. This transformer fully complies with the IEEE 802.3bt standard for 4PPoE, supporting up to 350mA per center tap (pins 1-18). The transformer supports 1000 Base-T data transmission rates. It offers excellent electromagnetic performance with optimized differential to common mode rejection ratio, crosstalk, and common mode rejection ratio across various frequency ranges.
The 7490240120 is designed to operate reliably across a wide temperature range from -40°C to +105°C and has achieved multiple certifications, including RoHS, REACH, and cURus, ensuring compliance with global standards for safety and environmental protection.
This SMT transformer is ideal for medical equipment, industrial Ethernet applications, and other systems requiring high-speed data transmission with robust electrical isolation and PoE functionality.
Engineered with medical-grade safety features, the 7490240120 fulfills IEC60601 requirements for 1xMOPP (Means of Patient Protection) for working voltages up to 250 Vrms. It features an exceptional insulation test voltage of 4000V (RMS), making it suitable for applications where electrical isolation is critical. With a clearance distance of 2.5mm and creepage distance of 4mm, this component meets stringent safety requirements for electrical spacing.
| Parameter | Value |
|---|---|
| Part Number | 7490240120 |
| Status | Active |
| Length | 28.32 mm |
| Width | 12.7 mm |
| Height | 15.24 mm |
| Data Rate | 1000BASE-T |
| Ports | 1 |
| PoE | Support 4P PoE |
| CMRR Improved? | No |
| Isolation Voltage (RMS) | 4000V |
| Mounting Type | SMT (Surface Mount) |
| Inductance | 350 μH |
| Operating Temperature | -40 °C to +105 °C |
| Storage Conditions | < 40 °C ; < 75 % RH (in original packaging) |
| Moisture Sensitivity Level (MSL) | 1 |
