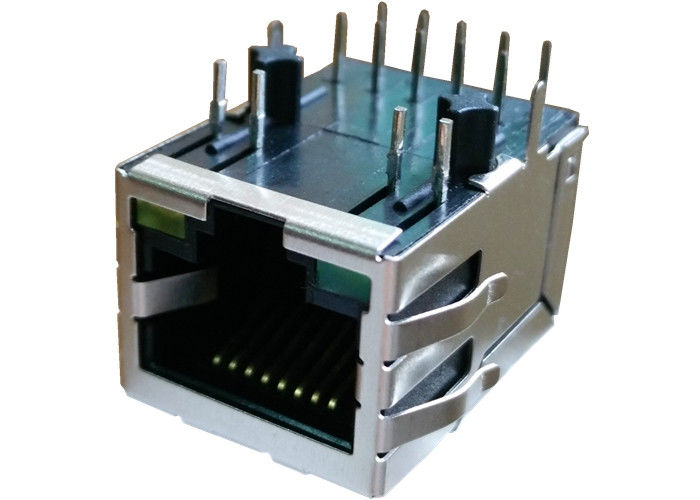

RJ000002 RJ45 10 / 100Base-T Modular Jack Network Tv-set Box LPJ0135GDNL

Name: RJ000002 RJ45 10 / 100Base-T Modular Jack Network Tv-set Box LPJ0135GDNL
Brand: LINK-PP
SKU: RJ000002
Rating: 4.8 (169 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RJ000002

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Specifications:	RJ000002	P/N:	LPJ0135GDNL
Mechanical:	21.25x15.90x13.40mm	Application:	10/100Base-T
Termination:	Solder	Samples:	Free

Specifications:	RJ000002
P/N:	LPJ0135GDNL
Mechanical:	21.25x15.90x13.40mm
Application:	10/100Base-T
Termination:	Solder
Samples:	Free

RJ000002 RJ45 10 / 100Base-T Modular Jack Network Tv-set Box LPJ0135GDNL

RJ000002 RJ45 10 / 100Base-T Modular Jack Network Tv-set Box LPJ0135GDNL

Feature
♦ RoHS Compliant
♦ Designed to meet IEEE802.3u / IEEE802.3af requirement.
♦ Designed for RoHS process.
♦ Primary center taps available for additional EMI reduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.

♦ LPJ0135GDNL LINK-PP Compatible to RJ000002

♦ Power Over Ethernet Magnetics Rj45

Description:

LAN 10/ 100BASE T Power over Ethernet RJ45 Jack With Magnetic + LED module for RoHS process

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Tags:

RJ45 Modular Jack

Magnetic RJ45 Jack

Low Profile RJ45 Jack

POE RJ45 Connector

Vertical RJ45 Jack

SMT RJ45 Connector

RJ45 Multi Port Jack

POE LAN Transformer

Discrete Magnetic Transformers

SFP Cage Connector

QSFP Cage

Optical Transceivers
