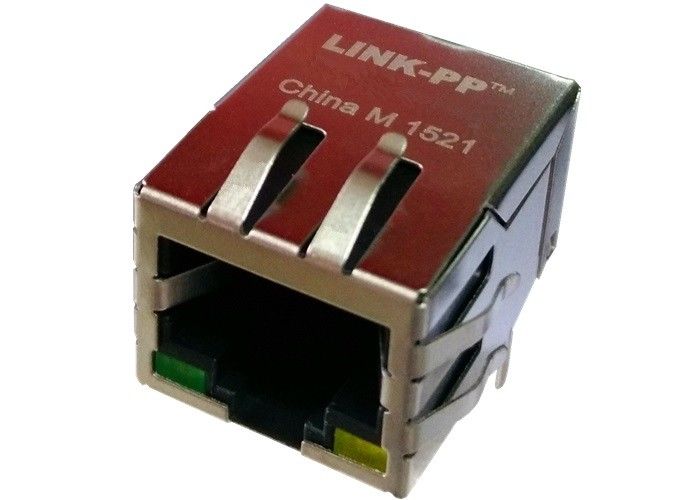

HR871159C | LPJ0141GENL TVS Magnetic RJ45 Jack 10/100Base-T

Name: HR871159C | LPJ0141GENL TVS Magnetic RJ45 Jack 10/100Base-T
Brand: LINK-PP
SKU: HR871159C
Rating: 4.6 (110 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HR871159C

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Specifications:	HR871159C	P/N:	LPJ0141GENL
Mechanical:	21.25x15.90x13.40mm	Application:	10/100Base-T
Termination:	Solder	LEDs:	None

Specifications:	HR871159C
P/N:	LPJ0141GENL
Mechanical:	21.25x15.90x13.40mm
Application:	10/100Base-T
Termination:	Solder
LEDs:	None

HR871159C | LPJ0141GENL TVS Magnetic RJ45 Jack 10/100Base-T

HR871159C | LPJ0141GENL TVS Magnetic RJ45 Jack 10/100Base-T

10/100 Base-T With LEDS , With EMI-Finger
1x1 Tab-DOWN RJ45 LPJ0141GENL
Through hole RJ45 modular jack
21.3mm length RJ45 Magjack
Compatible to HR871159C
Rj45 With TVS Protection

Features and Benefits

1. RoHS peak wave solder temperature rating 260°C
2. Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
3. Meets IEEE 802.3u specification
4. 350µH minimum OCL with 8mA bias current
5. High performance for MAX EMI suppression for cost-conscious applications

Description:

10/100 Base-TX RJ45 1x1 Tab-DOWN 8-pin Integrated Magnetics Connector, designed to support high volume cost-conscious consumer applications such as: ADSL modems, Cable modems, STB and Video on Demand.

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
