LPJ0155HENL POE RJ45 Connector Cross HFJ11-RP48-S1L12RL Magnetics Jack

Name: LPJ0155HENL POE RJ45 Connector Cross HFJ11-RP48-S1L12RL Magnetics Jack
Brand: LINK-PP
SKU: HFJ11-RP48-S1L12RL
Price: 0.09 USD
Availability: InStock
Rating: 4.9 (195 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: HFJ11-RP48-S1L12RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60PCS/Tray,22Trays=1320pcs/Carton=37*30*30CM=10KG

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 power over ethernet, dual rj45 jack


Specification:	HFJ11-RP48-S1L12RL	Part No:	LPJ0155HNL
Magnetic:	Integrated POE	Ethernet:	10/100Mbps Power Over Ethernet
Indicator:	LED Flexible	Samples:	Available

Specification:	HFJ11-RP48-S1L12RL
Part No:	LPJ0155HNL
Magnetic:	Integrated POE
Ethernet:	10/100Mbps Power Over Ethernet
Indicator:	LED Flexible
Samples:	Available

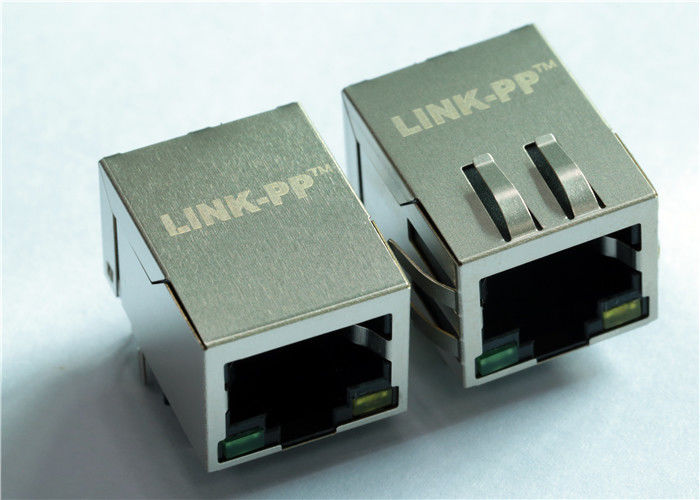

LPJ0155HENL POE RJ45 Connector Cross HFJ11-RP48-S1L12RL Magnetics Jack

LPJ0155HENL POE RJ45 Connector Cross HFJ11-RP48-S1L12RL Magnetics Jack

10/100 Base-T Magnetics with LEDS ,No EMI-Finger
1X1 Single Port Tab-down
Through hole RJ45 modular jack
21.3mm length RJ45 Magjack
LINK-PP LPJ0155HNL Rj45 Power Over Ethernet
Cross HFJ11-RP48-S1L12RL

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3af

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale.......

EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
