Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7499010004A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.15
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month

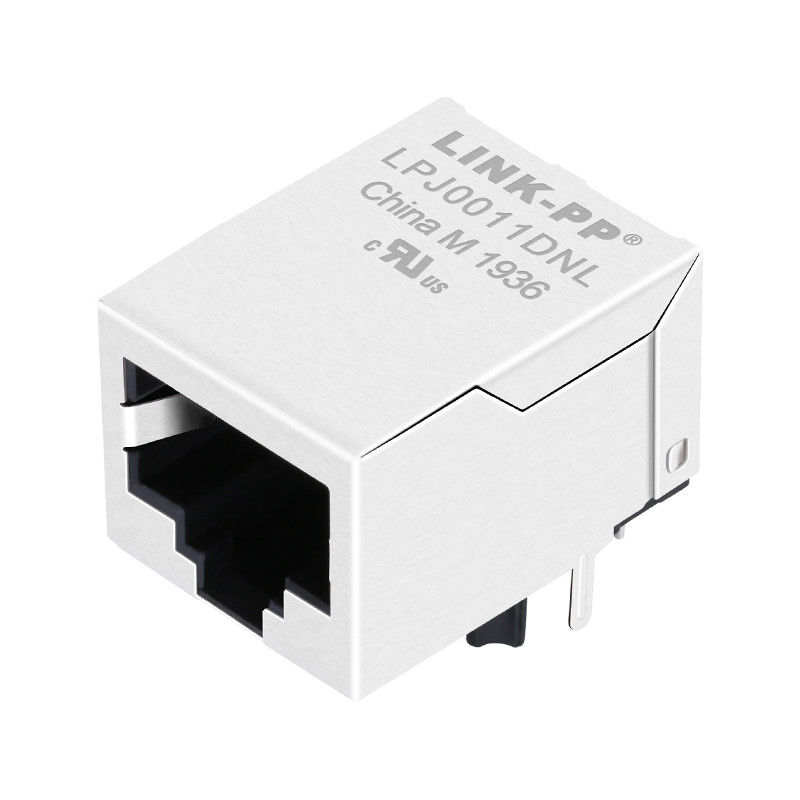

P/N: |
7499010004A |
Cross P/N: |
LPJ0011DNL |
Connector Type: |
Integrated Magnetics RJ45 (MagJack) |
Ethernet Speed: |
10/100 Mbps (100BASE-TX) |
Port Count: |
Single Port (1×1) |
Shielding: |
Shielded |
LEDs: |
No LEDs |
Mounting: |
Right-Angle Through-Hole |
Isolation Voltage: |
1500 Vrms |
Inductance: |
350µH |
Operating Temperature: |
0°C To +70°C |
Compliance: |
IEEE 802.3u, RoHS, REACH, UL 62368 |
P/N: |
7499010004A |
Cross P/N: |
LPJ0011DNL |
Connector Type: |
Integrated Magnetics RJ45 (MagJack) |
Ethernet Speed: |
10/100 Mbps (100BASE-TX) |
Port Count: |
Single Port (1×1) |
Shielding: |
Shielded |
LEDs: |
No LEDs |
Mounting: |
Right-Angle Through-Hole |
Isolation Voltage: |
1500 Vrms |
Inductance: |
350µH |
Operating Temperature: |
0°C To +70°C |
Compliance: |
IEEE 802.3u, RoHS, REACH, UL 62368 |
|
Category |
Parameter | Specification |
|---|---|---|
| General & Mechanical | Part Number | 7499010004A |
| Connector Type | RJ45 Jack (Female) | |
| USOC Code | RJ45 | |
| Port Configuration | 1 × 1 (Single Port) | |
| Positions / Contacts | 8P8C | |
| Mounting Style | Through Hole Technology (THT) | |
| Mounting Angle | Right Angle | |
| Termination Style | Solder | |
| Mating Cycles | 750 Cycles | |
| LED Indicator | None | |
| Moisture Sensitivity Level (MSL) | Level 1 | |
| Electrical Performance | Ethernet Standard | 100BASE-TX |
| Performance Category | Cat 5 | |
| Inductance (L) | 350 µH @ 100 kHz / 100 mV | |
| Turns Ratio (n) | 1:1 (±2%) | |
| Isolation Voltage | 1500 Vrms, 1 Minute | |
| Insertion Loss (IL) | ≤ 1 dB (1–100 MHz) | |
| Return Loss (RL) | ≥ 16 dB (1–30 MHz) | |
| ≥ 13.5 dB (30–60 MHz) | ||
| ≥ 12 dB (60–80 MHz) | ||
| ≥ 10 dB (80–100 MHz) | ||
| Crosstalk (CT) | ≥ 30 dB (1–100 MHz) | |
| Common Mode Rejection Ratio (CMRR) | ≥ 30 dB (1–100 MHz) | |
| Materials | Housing Material | Thermoplastic PA66, Black |
| Housing Flammability Rating | UL94 V-0 | |
| Shield Material | Brass | |
| Shield Plating | 50 µin Nickel | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | 30 µin Gold over 50 µin Nickel | |
| Environmental | Operating Temperature | 0°C to +70°C |
| Storage Temperature | < 40°C | |
| Storage Humidity | < 75% RH (Original Packaging) | |
| Compliance & Certifications | IEEE Compliance | IEEE 802.3u |
| RoHS Compliance | Compliant (2011/65/EU & 2015/863) | |
| REACH Compliance | Conforms to (EC) 1907/2006 | |
| Safety Certification | cURus Recognized, File No. E472316 (UL 62368) |
| Profile Feature | Pb-Free Assembly | Sn-Pb Assembly |
|---|---|---|
| Preheat Temperature Min (Ts min) | 100°C | 100°C |
| Preheat Temperature Typical (Ts typical) | 120°C | 120°C |
| Preheat Temperature Max (Ts max) | 130°C | 130°C |
| Preheat Time (ts) (Ts min to Ts max) | 70 s | 70 s |
| Ramp-Up Rate (ΔT) | ≤ 150°C Max. | ≤ 150°C Max. |
| Peak Temperature (Tp) | 250°C – 260°C | 235°C – 260°C |
| Time at Peak Temperature (tp) | ≤ 10 s Total (≤ 5 s per wave) | ≤ 10 s Total (≤ 5 s per wave) |
| Ramp-Down Rate (Min.) | ~2 K/s | ~2 K/s |
| Ramp-Down Rate (Typical) | ~3.5 K/s | ~3.5 K/s |
| Ramp-Down Rate (Max.) | ~5 K/s | ~5 K/s |
| Total Cycle Time (25°C to 25°C) | 4 Minutes | 4 Minutes |
