Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: RoHS
Model Number: 1-1840484-8
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.06-$3.2
Packaging Details: Tape and Reel
Delivery Time: 3-5 days
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Part Number: |
1-1840484-8 |
Number Of Ports: |
1x1 Single Port |
LED Color: |
G/GO |
Circuit Type: |
S8G56 Gigabit Ethernet |
EMI Shielding: |
Yes |
Built-in Magnetics: |
Yes |
Part Number: |
1-1840484-8 |
Number Of Ports: |
1x1 Single Port |
LED Color: |
G/GO |
Circuit Type: |
S8G56 Gigabit Ethernet |
EMI Shielding: |
Yes |
Built-in Magnetics: |
Yes |

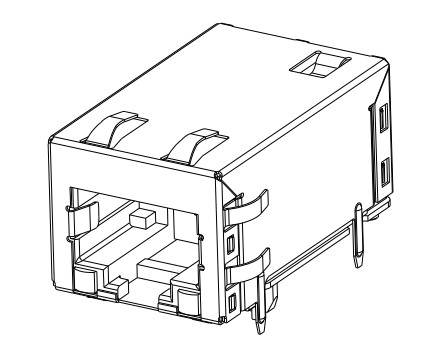

The MagJack 1-1840484-8 is an integrated connector module (ICM) designed for Gigabit Ethernet applications. This high-performance solution combines a standard RJ45 interface with built-in magnetic components (transformers and common-mode chokes) and LED indicators to support IEEE 802.3-compliant Gigabit Ethernet communication.
| Part Number | 1-1840484-8 |
|---|---|
| Insertion Loss | < -1.1 dB (0.5 MHz – 100 MHz) |
| Return Loss | > -14 dB (5.0 MHz – 40 MHz) |
| Crosstalk Attenuation | > -27 dB (1.0 MHz – 100 MHz) |
| Common Mode Rejection Ratio | > -35 dB (1.0 MHz – 40 MHz) |
| Insulation Resistance | > 500 MΩ @ 500 V |
| Withstand Voltage (Hi-Pot) | 0.75–1.5 kV for 60 seconds, 500 V/s rise time |
| Operating Temperature | 0°C to +70°C |
