Product Details
Place of Origin: HuiZhou, China
Brand Name: LINK-PP
Certification: RoHS Compliant
Model Number: 1-1840578-9
Payment & Shipping Terms
Minimum Order Quantity: 1pcs，Free samples
Price: $1.1-$4.3
Packaging Details: Tape & Reel (TR)
Delivery Time: 3-5 days
Payment Terms: TT, NET30/60/90 Days, Western Union
Supply Ability: 600K/Month
Series: |
RJ45 Integrated Connector Module |
PoE Support: |
Yes |
Number Of Ports: |
1X4 |
Height Profile: |
Low |
Speed: |
10/100BASE-T |
Length: |
58.24mm |
Width: |
33.02mm |
Height: |
12.25mm |
Series: |
RJ45 Integrated Connector Module |
PoE Support: |
Yes |
Number Of Ports: |
1X4 |
Height Profile: |
Low |
Speed: |
10/100BASE-T |
Length: |
58.24mm |
Width: |
33.02mm |
Height: |
12.25mm |

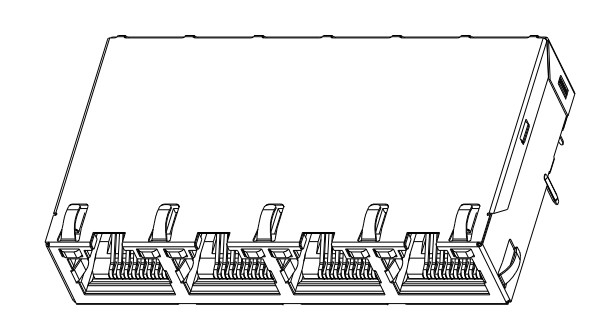

The 1-1840578-9 is a quad-port (1X4) 10/100BASE-T MagJack with Tab Up configuration and low profile design. It features Green/Green LED indicators and supports Power over Ethernet (PoE) with 15W power capability. This model operates in a commercial temperature range of 0°C to +70°C. It includes EMI tabs for improved electromagnetic interference protection, uses a through-hole mounting method, and is RoHS compliant.
| Parameter | Specification |
|---|---|
| Part Number | 1-1840578-9 |
| Series | Integrated RJ45 Connectors |
| Number of Ports | 1x4 (Quad Port) |
| Ethernet Speed | 10/100BASE-T |
| Tab Direction | Up |
| Mounting Type | Through-Hole Mount |
| Mounting Orientation | Right-Angle |
| PoE Support | PoE, up to 15W |
| PoE Current | 350 mA DC Max |
| LED Indicators | Green/Orange (GO/G) |
| Shielding | Shielded with EMI Fingers |
| Operating Temperature | 0°C to +70°C |
| Turns Ratio | TX: 1:1, RX: 1:1 |
| Open Circuit Inductance | 350 µH |
| Dimensions (L x W x H) | 58.24 mm x 33.02 mm x 12.25 mm |
| Compliance | RoHS Compliant |
