Product Details
Place of Origin: CHINA
Brand Name: Link-pp
Certification: RoHS compliant
Model Number: 615006143621
Payment & Shipping Terms
Minimum Order Quantity: 1pcs，Free samples
Price: $0.21 - $0.7
Packaging Details: Tray
Delivery Time: About 3 Days
Payment Terms: TT, NET30/60/90 Days, Western Union
Supply Ability: 20K Pieces per Week
Part Number: |
615006143621 |
(xPxC): |
6P6C |
Insulator Material: |
PBT (Polybutylene Terephthalate) |
Insulator Flammability Rating: |
UL94 V-0 |
Insulator Color: |
Black |
Contact Material: |
Copper Alloy |
Contact Plating: |
Selective Gold |
Contact Type: |
Stamped |
Part Number: |
615006143621 |
(xPxC): |
6P6C |
Insulator Material: |
PBT (Polybutylene Terephthalate) |
Insulator Flammability Rating: |
UL94 V-0 |
Insulator Color: |
Black |
Contact Material: |
Copper Alloy |
Contact Plating: |
Selective Gold |
Contact Type: |
Stamped |

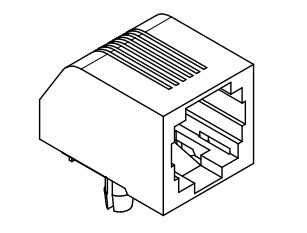

1. Configuration: Single port (1x1) 6P6C modular jack
2. Mounting Type: Through-hole horizontal mount with plastic tab down design
3. Contact Material: Copper alloy with selective gold plating
4. Durability: 500 mating cycles for extended service life
5. Operating Temperature: -40°C to +85°C for versatile application environments
6. Electrical Performance: 1.5A rated current, 120V working voltage
7. Insulation: PBT material with UL94 V-0 flammability rating
8. Regulatory Compliance: RoHS compliant, REACH conformity, UL approved
| Parameter Category | Parameter | Specification | Unit | Notes |
|---|---|---|---|---|
| General Specifications | Part Number | 615006143621 | - | WR-MJ Series |
| Product Type | 6P6C Modular Jack | - | Tab Down Design | |
| Configuration | 1x1 (Single Port) | - | - | |
| Compatibility | RJ11, RJ12, RJ14, RJ25 | - | Industry Standard Interfaces | |
| Mounting Type | Through Hole | - | Horizontal PCB Mount | |
| Physical Properties | Number of Positions/Contacts | 6P6C | - | 6 Position, 6 Contact |
| Orientation | Horizontal | - | - | |
| Tab Direction | Down | - | - | |
| Packaging | Tray | - | - | |
| Mechanical Properties | Durability | 500 | Mating cycles | Minimum |
| Electrical Properties | Rated Current | 1.5 | A | - |
| Working Voltage | 120 | V AC | - | |
| Withstanding Voltage | 1000 | V AC | 1 min test condition | |
| Contact Resistance | 20 | mΩ | Maximum | |
| Insulation Resistance | 500 | MΩ | Minimum | |
| Environmental Properties | Operating Temperature | -40 to +85 | °C | - |
| Dimensions | Length | 18.10 ±0.20 | mm | - |
| Width | 13.21 ±0.20 | mm | - | |
| Height | 12.57 ±0.20 | mm | - | |
| PCB Hole Diameter | 0.89 ±0.05 | mm | For mounting pins | |
| Certifications & Compliance | RoHS Approval | Compliant [2011/65/EU&2015/863] | - | Environmental compliance |
| REACH Approval | Conform or declared [(EC)1907/2006] | - | Chemical regulation compliance | |
| UL Approval | E324776 | - | Safety certification | |
| Packaging Information | Packaging Type | Tray | - | - |
| Minimum Order Quantity | 1 | pc | - | |
| Standard Packaging Quantity | 100 | pcs | - |
