Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 1-1840661-7
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50 pcs/1tray, 20 tray/1 carton, 32*30*31cm, 8KGS (1000pcs)/1 carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Items: |
1-1840661-7 RJ45 Connector With Transformer |
Number Of Ports: |
Stacked 2X4 |
EMI Tabs: |
Yes |
LED Indicator: |
Left GO, Right GO |
Speed: |
1000BASE-T |
Operating Temperature: |
0 ~ +70ºC |
Items: |
1-1840661-7 RJ45 Connector With Transformer |
Number Of Ports: |
Stacked 2X4 |
EMI Tabs: |
Yes |
LED Indicator: |
Left GO, Right GO |
Speed: |
1000BASE-T |
Operating Temperature: |
0 ~ +70ºC |
|

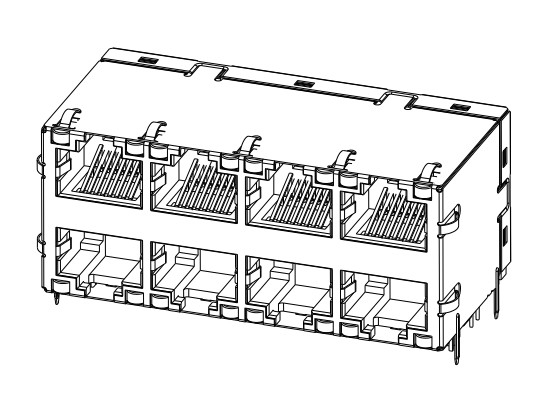

RJ45 Connector with 1000 Base-T Integrated Magnetics |
|
|
Part Number |
1-1840661-7 |
|
Length |
28.12mm |
| Width | 59.07mm |
| Height | 25.50mm |
| Connector Type | RJ45 Multi-Port Jack |
|
LED Option |
GREEN ORANGE / GREEN ORANGE |
|
Latch |
TAB UP AND DOWN |
|
Number of Ports |
2X4 |
|
Transform |
INTEGRATED MAGNETICS |
|
PCB Mount Angle |
SIDE ENTRY |
|
UL Certification |
YES |
|
RoHS Compliant |
YES |
| Housing Material | Thermoplastic |
| Thermoplastic | UL94V-0 |
|
Shield EMI Tabs |
WITH |
|
Application |
10/100/1000 BASE-T |
|
Temperature Range |
0 TO 70℃ |
| Transmission mode | Full duplex |
| IMPEDANCE | 100 OHMS |
|
Turns Ratio |
(CHIP: CABLE)1:1 ALL FOUR PAIRS |
| INDUCTANCE (OCL) | 350uH MIN @100kHz, 0.1 VRMS, 8mADC BIAS FROM 0°C TO 70°C |
| Isolation voltage | 2250VDC(MAX) |
The MagJack 1-1840661-7 is a high-performance multi-port Integrated Connector Module designed for Gigabit Ethernet applications. It integrates four RJ-45 connectors with transformers and LED indicators in a compact form factor, providing a complete physical layer interface solution. The product features excellent electrical performance, reliable design, and comprehensive LED status indication, making it suitable for various network devices and communication equipment requiring Gigabit Ethernet Magjacks.
