1-1840727-6 1000BASE-T Integrated Connector Module Current Product

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: 1-1840727-6

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50 pcs/1tray, 20 tray/1 carton, 32*30*31cm, 8KGS (1000pcs)/1 carton

Delivery Time: in Stock Ship Today

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

1-1840727-6

,

1000BASE-T ICMs

,

Current RJ45 Magjack

Part Number:
1-1840727-6
LED Configuration:
Green/Yellow
Speed:
1000BASE-T
Operating Temperature:
0 ~ +70ºC
Tab:
Up
EMI Tabs:
Yes
Part Number:
1-1840727-6
LED Configuration:
Green/Yellow
Speed:
1000BASE-T
Operating Temperature:
0 ~ +70ºC
Tab:
Up
EMI Tabs:
Yes
1-1840727-6 1000BASE-T Integrated Connector Module Current Product



Specifications of 1-184727-6 RJ45 Magjack:

Specification Details
Connector Type RJ45 with Integrated Magnetics
Number of Ports Single (1X1 Configuration)
Application 1000BASE-T Gigabit Ethernet
Circuit Type Gigabit Current
LED Configuration Green/Yellow
Tab Direction Up
Housing Material Thermoplastic, Black, UL 94V-0 Rated
Shield Material Copper Alloy with Nickel Plating
Contact Material Phosphor Bronze with Gold Plating
LED Current Constant Current at Approx. 20mA
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Compliance IEEE 802.3, RoHS
LED Position Color Typical Indication
Left LED Green Link Status
Right LED Yellow Activity/Speed
Dimension Measurement
Length 33.02 mm
Width 19.19 mm
Height 15.01 mm



1-184727-6 Integrated RJ45 Jack Highlights:



  1. Single-port RJ45 connector with integrated magnetics for 1000BASE-T applications.
  2. Green/Yellow LED configuration for comprehensive status indication.
  3. 1G27 Gigabit circuit for optimal signal integrity.
  4. Tab Up orientation for flexible PCB layout design.
  5. Thermoplastic housing material (UL 94V-0 rated) ensures durability and heat resistance.
  6. Through-hole mounting type for secure PCB installation.
  7. Compliant with IEEE 802.3 standards for Gigabit Ethernet.
  8. Operating temperature range: 0°C to 70°C.

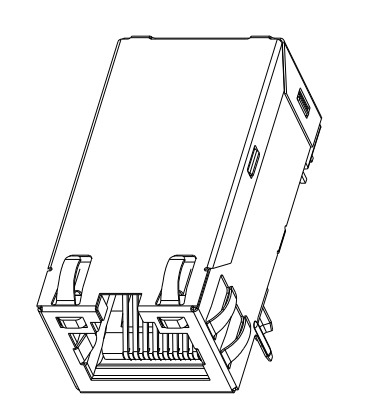

1-184727-6 Drawing:



1-1840727-6 1000BASE-T Integrated Connector Module Current Product 0

1-1840727-6 1000BASE-T Integrated Connector Module Current Product 1





Installation and Integration:



The 1-1840727-6 MagJack features a through-hole mounting design for secure PCB installation. The connector's Tab Up orientation facilitates proper alignment during assembly, ensuring correct positioning and reliable connections. The thermoplastic housing provides excellent durability and heat resistance, making it suitable for various manufacturing processes, including wave soldering.



When designing with the 1-1840727-6 MagJack, engineers can benefit from simplified PCB layouts due to the integrated magnetic components. This integration eliminates the need for separate transformers and common-mode chokes, reducing component count and potential failure points. The Gigabit circuit ensures optimal signal integrity for high-speed data transmission in 1000BASE-T applications.
