Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 9-1840860-4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $1.2-$4.8
Packaging Details: 50 pcs/1tray, 20 tray/1 carton, 32*30*31cm, 8KGS (1000pcs)/1 carton
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
9-1840860-4 |
LED Configuration: |
GY/GY |
Speed: |
1000BASE-T |
Operating Temperature: |
0 ~ +70ºC |
Port Configuration: |
Stacked |
EMI Tabs: |
With In The Top |
Part Number: |
9-1840860-4 |
LED Configuration: |
GY/GY |
Speed: |
1000BASE-T |
Operating Temperature: |
0 ~ +70ºC |
Port Configuration: |
Stacked |
EMI Tabs: |
With In The Top |

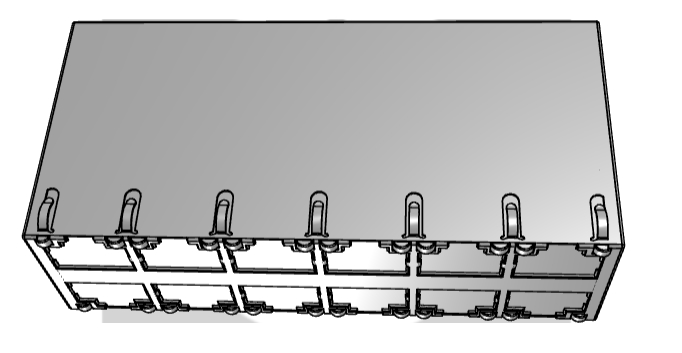

The 9-1840860-4 Integrated Connector Module (ICM) features a 2x6 stacked RJ45 port configuration with integrated magnetics for 1000BASE-T applications. With built-in LED indicators (Green/Yellow), EMI shielding tabs, and through-hole mounting, the module offers both functional visibility and mechanical stability for demanding PCB designs. Designed to support high-speed data transmission with enhanced signal integrity, this magjack is ideal for network switches, routers, and industrial communication equipment.
| Specification | Details |
|---|---|
| Connector Type |
Multiport RJ45 Connector with Magnetics |
| Number of Ports | 2X6 |
| Application | Gigabit Ethernet |
| Height Profile | Standard |
| LED Configuration | Green/Yellow |
| Tab Direction | Up and Down |
| EMI Tabs | Yes |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Compliance | RoHS |
| Length | 41.20 mm |
| Width | 87.01 mm |
| Height | 25.50 mm |
