Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7498111123
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Negotiable
Packaging Details: Tape
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
7498111123 |
PoE: |
NoN PoE |
PHY Chip Mode: |
Current |
Data Rate: |
1000Base-T |
Ports: |
1 |
Tab: |
Down |
Operating Temperature: |
-40 °C Up To +85 °C |
LED: |
Yellow-green |
Mount: |
THR |
Shield Tabs: |
Yes |
Part Number: |
7498111123 |
PoE: |
NoN PoE |
PHY Chip Mode: |
Current |
Data Rate: |
1000Base-T |
Ports: |
1 |
Tab: |
Down |
Operating Temperature: |
-40 °C Up To +85 °C |
LED: |
Yellow-green |
Mount: |
THR |
Shield Tabs: |
Yes |

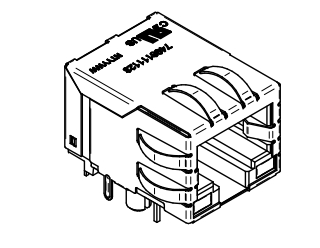

The WE-RJ45LAN series 7498111123 RJ45 connectors with 1000BASE-T integrated magnetics are designed for seamless and efficient integration into Ethernet interfaces. The 7498111123 model, specifically engineered for Through Hole Reflow (THR) soldering, combines an RJ45 connector with an integrated transformer and common mode choke. This compact design is approximately 50% smaller than discrete magnetics solutions, significantly saving valuable board space while ensuring compliance with IEEE 802.3 and IEC 62368-1 standards.
| Parameter | Specification |
|---|---|
| Inductance (L) | 350 µH min (100 kHz / 100 mV / 8 mA) |
| Insulation Test Voltage (Viso) | 2250 VDC |
| Insertion Loss (IL) | -1 dB max (1–100 MHz) |
| Return Loss (RL) | -16 dB min (1–30 MHz) -14 dB min (30–60 MHz) -12 dB min (60–80 MHz) -10 dB min (80–100 MHz) |
| Crosstalk (CT) | -33 dB min (1–60 MHz) -30 dB min (60–80 MHz) -30 dB min (80–100 MHz) |
| Common Mode Rejection Ratio (CMRR) | -33 dB min (1–30 MHz) -30 dB min (30–60 MHz) -30 dB min (60–80 MHz) -30 dB min (80–100 MHz) |
| Turns Ratio | 1:1 |
| Data Rate | 1000BASE-T |
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Storage Conditions (in original packaging) | < 40°C; < 75% RH |
| Moisture Sensitivity Level (MSL) | 1 |
| Mating Cycle | 750 cycles |
| Component | Material / Plating |
|---|---|
| Plastic Housing Material | Thermoplastic LCP, Black |
| Flammability Rating | UL94 V-0 |
| Shielding Material | Brass |
| Shielding Plating | 30µ" Nickel |
| Contact Material | Phosphor Bronze |
| Contact Plating | 30µ" Gold over 50µ" Nickel |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
