1-1840870-4 Integrated Connector Module RJ45 2x8 Ports With LEDs

Name: 1-1840870-4 Integrated Connector Module RJ45 2x8 Ports With LEDs
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 1-1840870-4
Price: 1.09 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: 1-1840870-4

Payment & Shipping Terms

Minimum Order Quantity: 1pcs, Free samples

Price: $0.09-$2.85

Packaging Details: 50pcs/tray

Delivery Time: About 3 days

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 6000K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    RJ45 2X8, 1-1840870-4, 2x8 Stacked RJ45


Number Of Port:	2x8	LED Color:	Right-Green/Yellow; Left-Green/Yellow
Part Number:	1-1840870-4	Data Rate:	1000BASE-T
Port Configuration:	Stacked	PCB Mount Orientation:	Right Angle
EMI Tabs:	With	Mount:	Through Hole Mount

Number Of Port:	2x8
LED Color:	Right-Green/Yellow; Left-Green/Yellow
Part Number:	1-1840870-4
Data Rate:	1000BASE-T
Port Configuration:	Stacked
PCB Mount Orientation:	Right Angle
EMI Tabs:	With
Mount:	Through Hole Mount

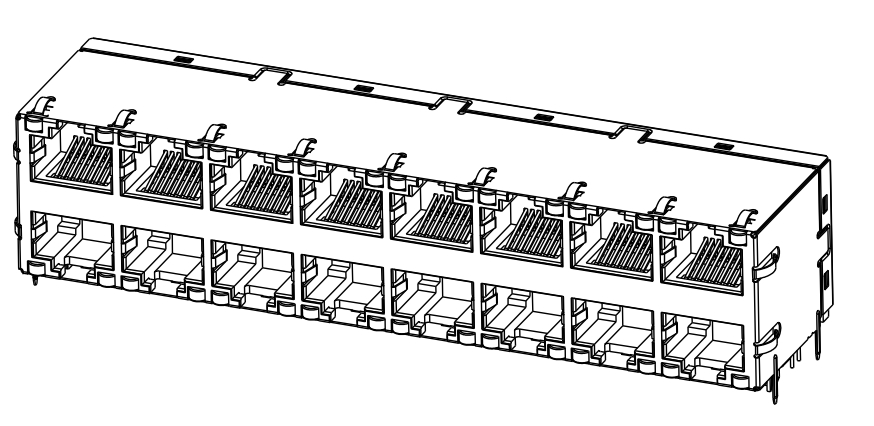

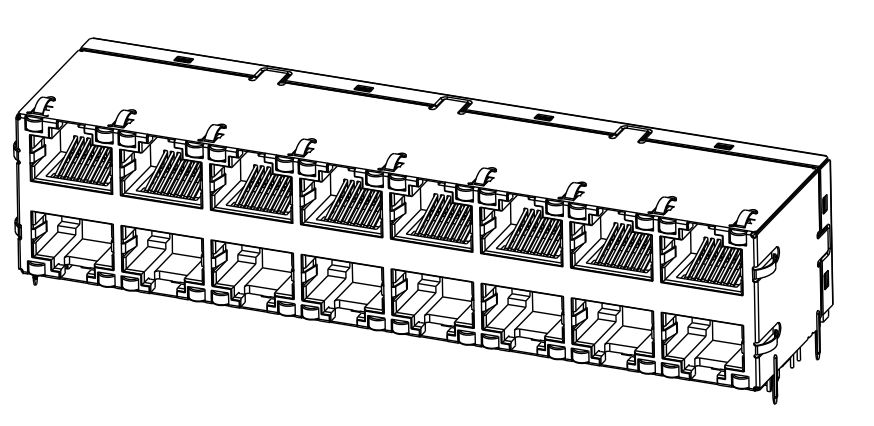

1-1840870-4 Integrated Connector Module RJ45 2x8 Ports With LEDs

Product Description:

The 1-1840870-4 MagJack is a high-performance, 2x8 stacked RJ45 connector with integrated magnetics, designed to support 1000BASE-T Gigabit Ethernet applications. Engineered for reliability and efficiency, this Integrated Connector Module (ICM) is ideal for network equipment, servers, and communication devices requiring compact design and superior signal integrity. With its stacked configuration, compact footprint, and reliable electrical performance, the 1-1840870-4 RJ45 2x8 is an excellent choice for networking switches, routers, servers, industrial Ethernet systems, and telecom applications.

Performance Characteristics:

Insertion Loss (IL): ≤1 dB (0.5–100 MHz)
Return Loss (RL): ≥18 dB (0.5–40 MHz)
Crosstalk Attenuation: ≥35 dB (0.5–100 MHz)
Common Mode Rejection Ratio (CMRR): ≥30 dB (0.5–100 MHz)
Isolation Voltage: 2250 VDC (Max), for 500 V/s, all ports connected

RJ45 2X8 1-1840870-4 Datasheet:

1-1840870-4 Integrated Connector Module RJ45 2x8 Ports With LEDs 0

Key Features & Benefits of Stacked RJ45 1-1840870-4:

Port Configuration: 2x8 stacked layout, optimized for high-density designs.
Data Rate: Supports 1000BASE-T Gigabit Ethernet with backward compatibility to 10/100BASE-T.
Magnetics Performance: 100Ω impedance, 350uH OCL minimum, 1:1 turns ratio on all four pairs, ensuring signal integrity and EMI suppression.
LED Indicators: Dual-color (Green/Yellow) LEDs provide a clear link and activity status for each port.
Construction:
Housing: Black thermoplastic, UL 94V-0 rated for flame resistance.
Shield: Brass, nickel pre-plated with tin solder tails for durability.
Contacts: Phosphor bronze with gold plating for long-term reliability.
EMI Tabs: Integrated design enhances electromagnetic compatibility.
Environmental Specs: Operating temperature range 0°C to +70°C, RoHS compliant, halogen-free.
Isolation Voltage: Up to 2250VDC for enhanced safety.
