Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 1840870-1
Payment & Shipping Terms
Minimum Order Quantity: 1pcs, Free samples
Price: $0.09-$2.85
Packaging Details: 50pcs/tray
Delivery Time: About 3 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Number Of Port: |
Stacked 2x8 |
Speed: |
1000BASE-T |
Part Number: |
1840870-1 MagJacks |
Height Profile: |
Standard |
Operating Temperature: |
0 ºC ~ +70 ºC |
Length: |
28.12mm |
Width: |
114.95mm |
Height: |
25.50mm |
Number Of Port: |
Stacked 2x8 |
Speed: |
1000BASE-T |
Part Number: |
1840870-1 MagJacks |
Height Profile: |
Standard |
Operating Temperature: |
0 ºC ~ +70 ºC |
Length: |
28.12mm |
Width: |
114.95mm |
Height: |
25.50mm |

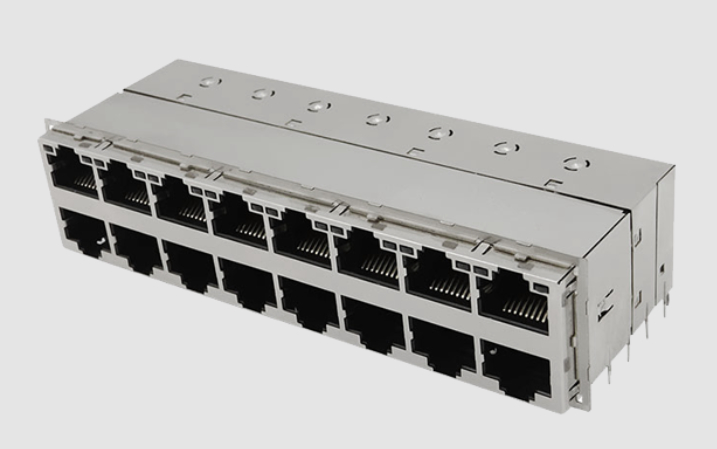

1840870-1 2x8 MagJacks Overview
|
Attribute |
Value |
|---|---|
|
Number of ports |
Stacked 2x8 |
|
LED Color |
Right-Green; Left-Green |
|
Part Number |
1840870-1 |
|
Speed |
1000BASE-T |
|
RoHS Compliant |
yes |
| Operating Temp. | 0°C ~ +70°C |
|
PCB Mount Orientation |
Right Angle |
|
EMI Tabs |
With |
|
Mount |
Through Hole Mount |
| Soldering Process | Wave soldering, 260°C peak / 10s |
| Magnetics | 1:1 ratio, 100Ω impedance |
| OCL | 350uH Min @100kHz, 8mA bias |
| Isolation Voltage | 2250VDC / 60s |
| Housing Material | Black Thermoplastic, UL 94V-0 |
| Shield | Brass, Nickel-plated |
| Contacts | Phosphor Bronze, Gold-plated mating interface |
