Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 1840870-1
Payment & Shipping Terms
Minimum Order Quantity: 1pcs, Free samples
Price: $0.09-$2.85
Packaging Details: 50pcs/tray
Delivery Time: About 3 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K-PCS/Month

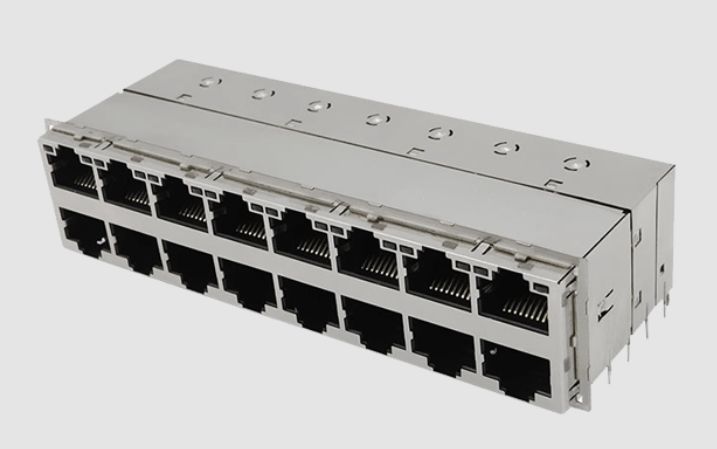

Number Of Port: |
Stacked 2x8 |
Speed: |
1000BASE-T |
Part Number: |
1840870-1 MagJacks |
Height Profile: |
Standard |
Operating Temperature: |
0 ºC ~ +70 ºC |
Length: |
28.12mm |
Width: |
114.95mm |
Height: |
25.50mm |
Number Of Port: |
Stacked 2x8 |
Speed: |
1000BASE-T |
Part Number: |
1840870-1 MagJacks |
Height Profile: |
Standard |
Operating Temperature: |
0 ºC ~ +70 ºC |
Length: |
28.12mm |
Width: |
114.95mm |
Height: |
25.50mm |
|
Attribute |
Value |
|---|---|
|
Number of port |
2x8 |
|
LED Color |
Right-Green/Yellow; Left-Green/Yellow |
|
Part Number |
1-1840870-4 |
|
Data Rate |
1000BASE-T |
|
Port Configuration |
Stacked |
|
PCB Mount Orientation |
Right Angle |
|
EMI Tabs |
With |
|
Mount |
Through Hole Mount |
| Operating Temp. | 0°C ~ +70°C |
| RoHS Compliant | Yes |
| Housing Material | Black Thermoplastic, UL 94V-0 |
| Shield | Brass, Nickel-plated |
| Contacts | Phosphor Bronze, Gold-plated mating interface |
| PCB Material | High Temperature PCB, Tg>170°C |
| Magnetics | 1:1 ratio, 100Ω impedance |
| OCL | 350uH Min @100kHz, 8mA bias |
| Electrical Performance | IL ≤ 1dB (0.5–100MHz) RL ≥ 18dB (0.5–40MHz) Crosstalk ≥ 35dB |
| CMRR | ≥ 30dB (0.5–100MHz) |
| Isolation Voltage | 2250VDC / 60s |
| RJ45 Cavity | FCC Part 68 Subpart F compliant |
| LED Color Options | Green (568nm, VF 2.2V), Yellow (588nm, VF 2.1V), Orange (605nm, VF 2.1V) |
| Soldering Process | Wave soldering, 260°C peak / 10s |
